2.Function Introduction

2.1. Introduction

This feature is currently in the experimental stage and is available for users to use for free. There may be occasional system failures. It is not recommended to use it in important commercial projects. The remote access function has two sub-functions: one is the remote configuration management of WeChat mini-program, and the other is the frp function. Add WeChat Mini Program

2.2. Reverse Proxy

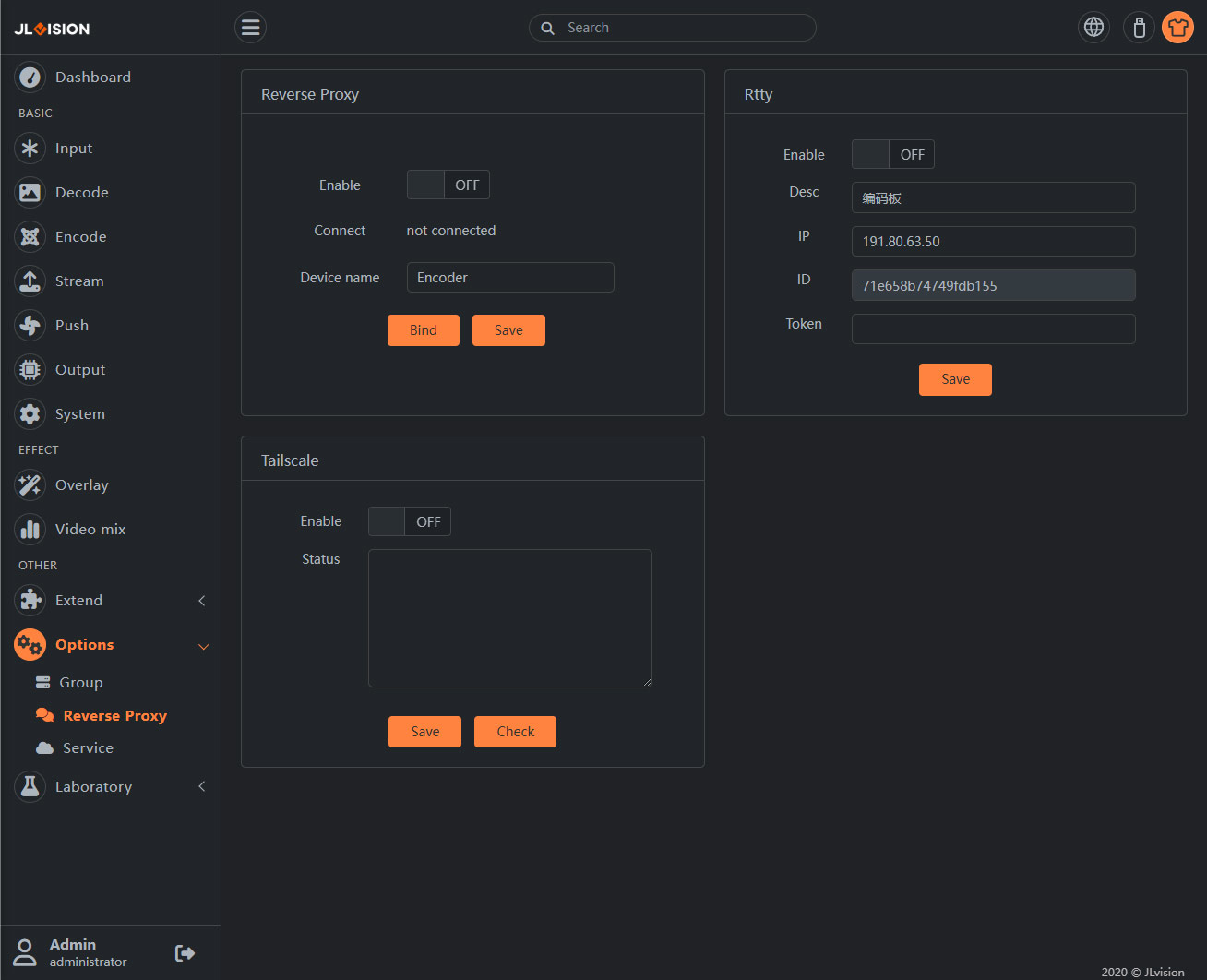

Open the ‘Options’-> “Reverse Proxy” page in the background of the video encoder. Ensure that the network configuration of the encoder device is correct and it can access the internet normally. Then enable remote management and set a manageable name for the device.

At this point, the connection status should be ‘Connected’. Otherwise, please check the network.

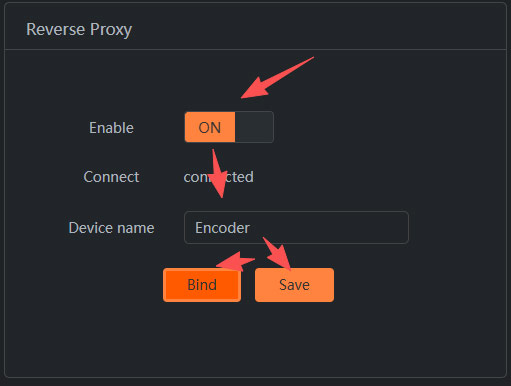

2.3. Bind the device

Click the ‘Bind’ button, a QR code will pop up. Use the “Add Device” function within the mini-program, then directly scan with WeChat for successful binding. The QR code will automatically close. Otherwise, please recheck the network.

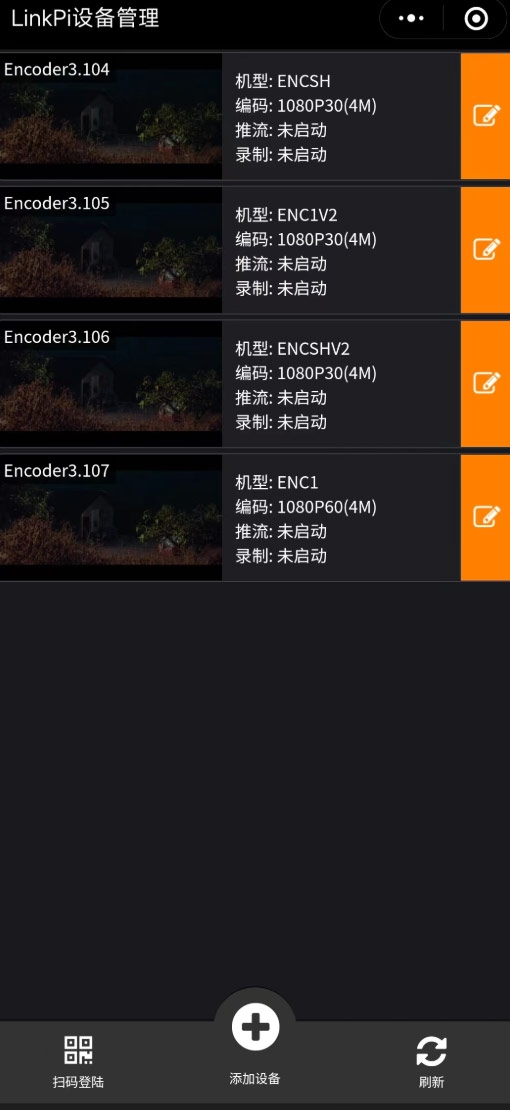

2.4. Using mini-programs for device management

After binding the device, in some cases, due to network latency, the newly added device may not appear in the list. You can manually click the “Refresh” button to refresh the device list.

Other function operations are similar to those in the web backend of the device and will not be elaborated further. However, currently this function does not have an English interface.

2.5. Use the web interface for remote device management（https://mqtt.linkpi.cn/）

After completing the device addition operation on the WeChat mini-program, remote device management can also be carried out using the PC browser.
After accessing the above website, use the “scan code login” function of the mini-program, or directly use the WeChat scan function to scan the QR code displayed in the browser.
After successful login, the QR code will disappear, and then you can use the browser to manage the devices that have been bound.
