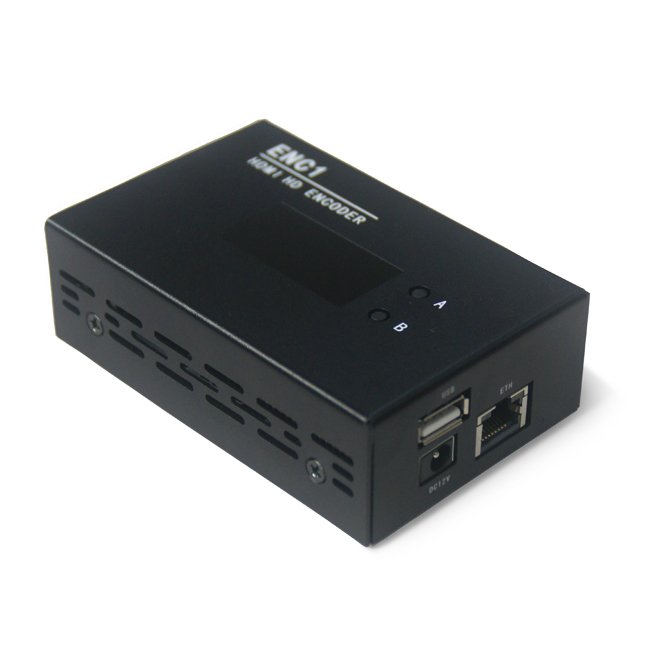

ENC1 1080P HD h 265 video codec which is studied, It is a one channel of 1080P embedded video and audio hardware codec. It applies H 265 and H 264 encoding standard.Hardware h 265 encoders use independent SOC chips to encode and push video and audio signals, the ENC1 hevc hdmi video encoder encoding algorithm is used to transmit it to the network in the form of network packets. Since it only focuses on one thing, it is stable and has very low power consumption. As for video and audio quality, it mainly focuses on encoder main chip provider, please check my tweets. (I recommend ENC hevc hdmi video encoder,As shown in figure 3.1)

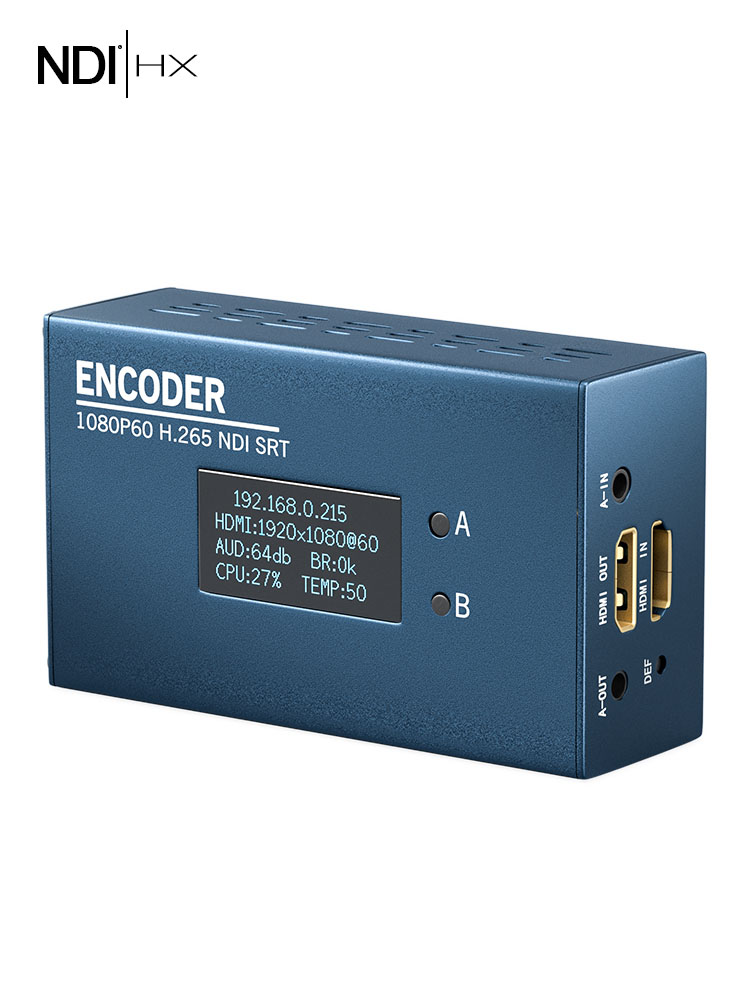

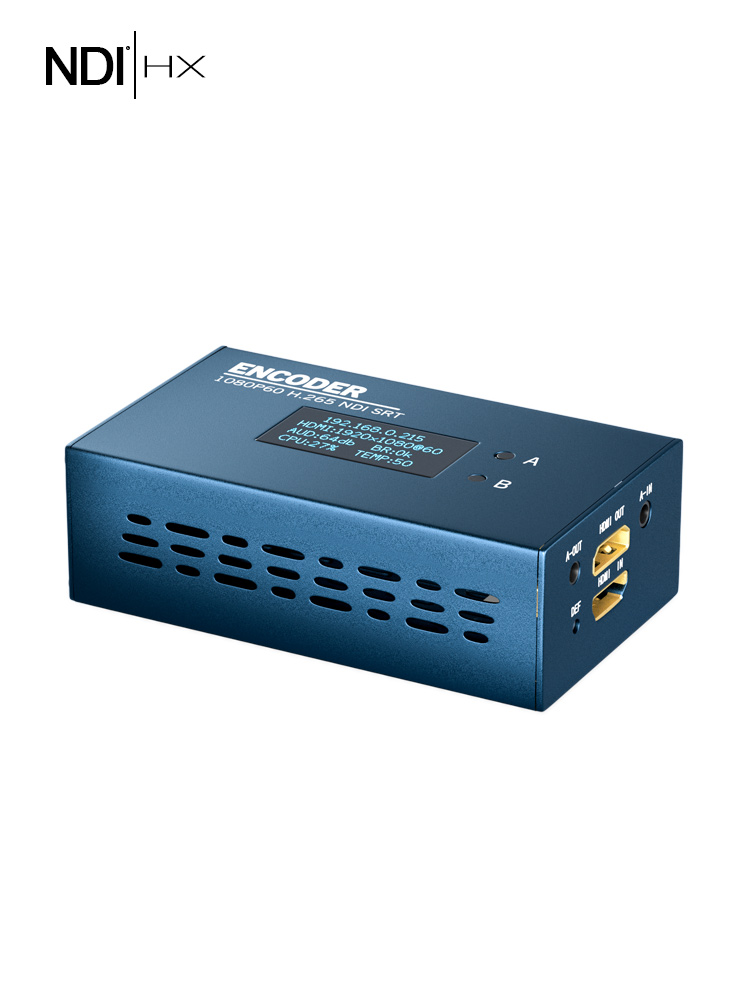

NDI HX HEVC codec for ENC1 1080P 60fps srt live video streaming encoder
Description
JLONvision ENC1 SRT HEVC codec is the fastest, easiest, and best way to get video into IP workflows. it delivers the groundbreaking benefits of NDI®, NewTek’s innovative Network Device Interface technology. It captures any HDMI video source and convert it to IP. In its ultra-portable enclosure. Applications of the ndi hx rtmp SRT live streaming video encoder include hotel TV system, school teaching, digital TV broadcasting, recording system,live video streaming by web celebrity.
ENC1 srt HEVC codec which is studied, developed and manufactured independently by JLONvision is a 1 channel of 1080P embedded video and audio hardware encoder and decoder. It applies H 265 and H 264 encoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 1 channels of 1080P H 265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H 264 encoding algorithm, ENC1 ndi live streaming video encoder can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.
ENC1 hevc hdmi video encoder h 265 and h 264 of video decoding standard are supported, Supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol SRT,HTTP, HLS, RTSP, RTP,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.
ENC1 1080P HD srt HEVC codec ENC1 can push live video stream to Facebook, YouTube, Amazon, Twitch, Livestream etc. Multiple platforms.
Advantages
NDI® Output Deliver any digital video source to the network in full HD, with high-efficiency NDI® output via NDI|HX and native support for resolutions up to 1080p.
NDI® Virtual Input Designate ENC1 as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more using the free NDI® Virtual Input* tool. (* NDI Virtual Input included with the free NewTek NDI Tools download.)
Web-Based Interface Monitor video, manage login credentials, access recording controls, and configure audio, video, and network settings from any supported Web browser on any compatible networked device.
Network Visibility Access devices connected to other networks via IP address and make them visible within your production environment using NDI Access Manager.

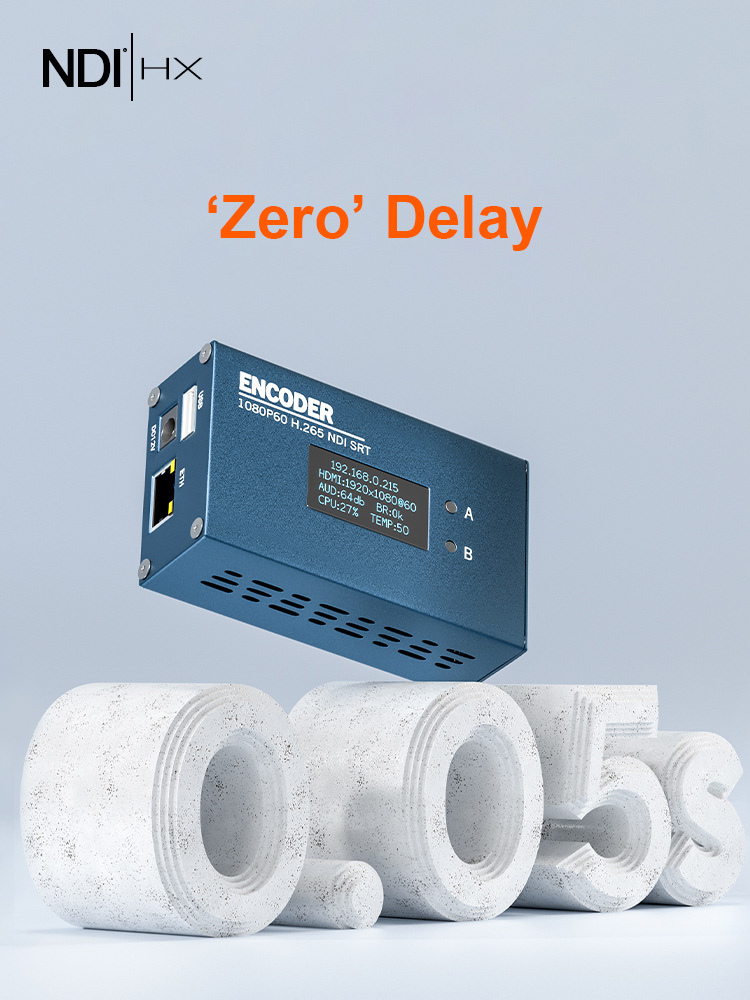

High bandwidth adaptability Achieve low bit rate encoding and ensure high definition image quality, 1Mbps@720p, 1.5Mbps@1080p can get high quality video. JLONvision advanced video buffer technology and forward error correction technology ensure video encoding delay ≤ 67ms and no stuck. It supports up to 1080p60Hz video format, the resolution of output format can be customized.
Support All live broadcast platforms Support SRT,RTP,RTSP,RTMP,HLS,TS streaming media protocols for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc. Support Onvif 1.1-2.0 easy access to security protection system. Dual streams output supported and can be pushed to different live broadcasting platforms simultaneously, main stream encoding up to 1080p60Hz, sub stream encoding support 540p 60Hz. Strong flexibility to support secondary development Open API programming,SDK provided for second development,Customization service is available based on client’s needs.
1080P60fps Here is a comparison table of parameters of ENC1 products of the same type
| Product |
ENC1 |
MiniENC1 |
ENC1-V3 |
|---|---|---|---|
| Core Chip | HI3520DV400 | HI3516CV610 | 22AP10 |
| HDMI IN | 1 | 1 | 1 |
| HDMI OUT | 1 | X | 1 |
| Input Resolution | 1080P60 | 4K30 | 4K30 |
| Output Resolution | 1080P60 | X | 4K30 |
| Maximum coding capacity(Note 1) | 1080P30 x 2 | 1080P60 | 1080P30 x 4 |
| Decoding capability(Note 1) | 1080P30 x 2 | Χ | 1080P30 x 4 |
| Turn into a capture card | Χ | √ | Χ |
| Tally Light | Χ | √ | Prolongable |
| Status Display Screen | OLED | LCD | OLED |
| Hot Boot Extension | DIY | Prolongable | DIY |
Note 1:The encoding/decoding processing power is based on 1080P30 as a reference unit and can be converted to other frame rates or resolutions such as 1080P30x2≈1080P60, 1080P30x4≈4K30, and so on.
Technical Features
- Embedded hardware encoder
- H 265,H 264 Main profile
- Signal source resolution 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Support High-bandwidth Digital Content Protection (HDCP)
- Audio output format AAC,MP3,PCMA,MPEG-2
- Coding Resolution: 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Support 1-channel decoder HDMI output and multiple live streams mix video output
- Support CBR,VBR,AVBR
- Highest code rate 40Mbps
- Automatic scene change detection technology, improve the coding effect
- Every channel is inserted with de-interlacing scanning algorithm
- ENC1 hevc hdmi video encoder can use space pre-treatment and block filtering technology for moving scenes
- ENC1 mini box video compressor can do the recording during the set time and save the recorded files in the networks.
- With dongle function, Monitor safe operation
- Support a variety of common platforms at home and abroad such as NDI,wowza, FMS, youtube,facebook,NJ and so on

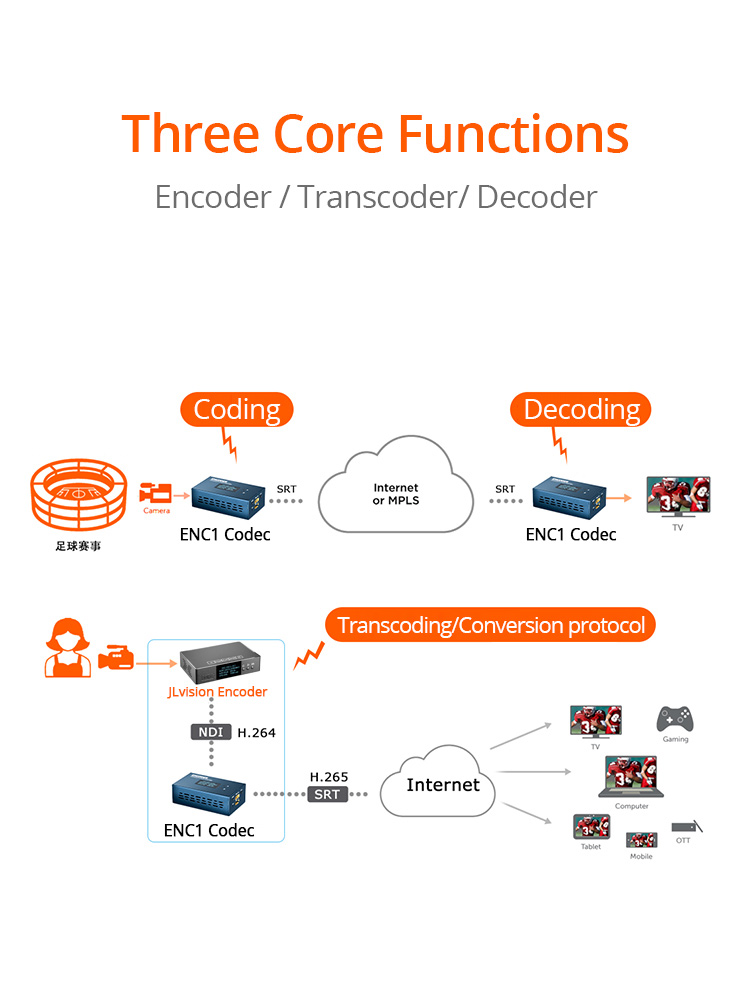

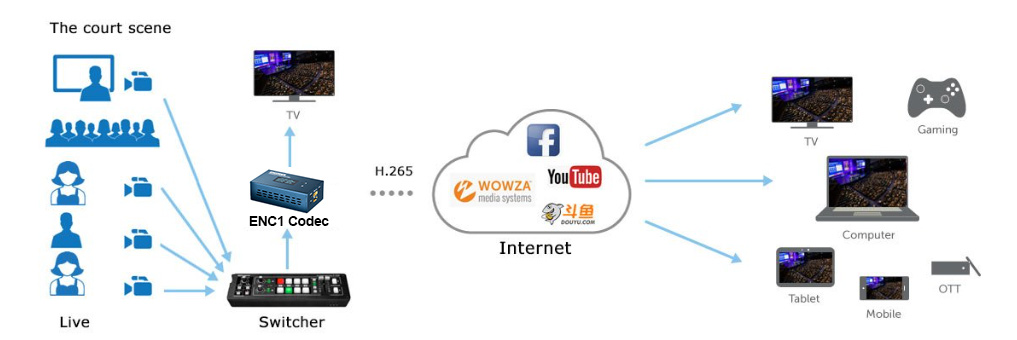

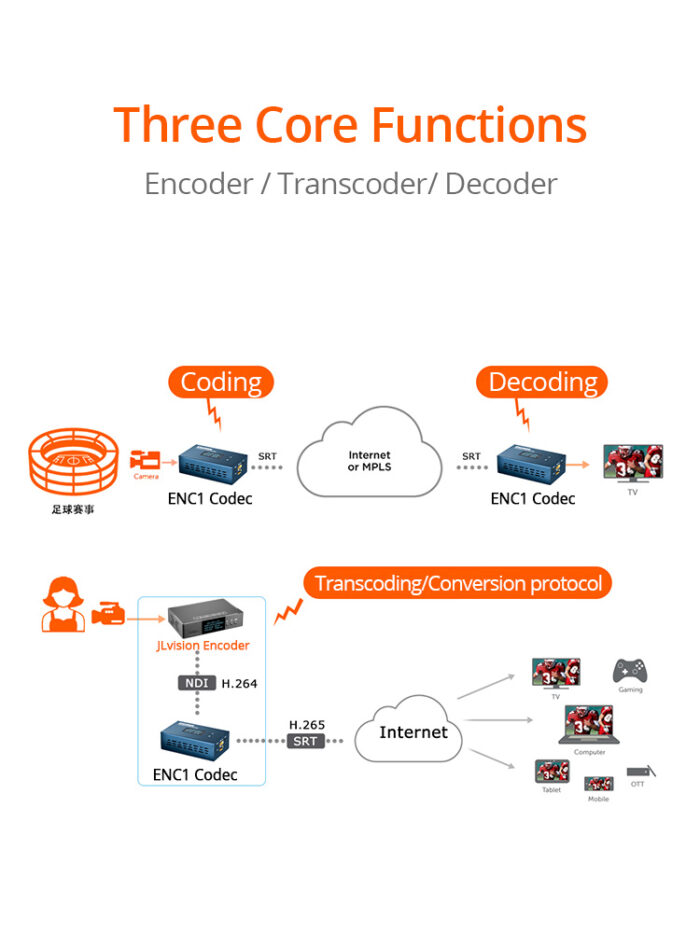

Topology diagram of the overall scheme
Product Advantages
- SOC chip is even more powerful
- Mini design is easy to carry
- 1080P of image effect is more exquisite
- Strong system stability
- Low cost of maintenance
- 7×24 non-stoping work
- Multi-media platforms
Software configuration picture
Technical Specification Table
| Product Parameter | |
|---|---|
| Key Performance | CPU:ARM Cortex-A7@ 1.3GHz
Internal storage:512MB DDR3 Flash:256MB SPI Nand Flash |

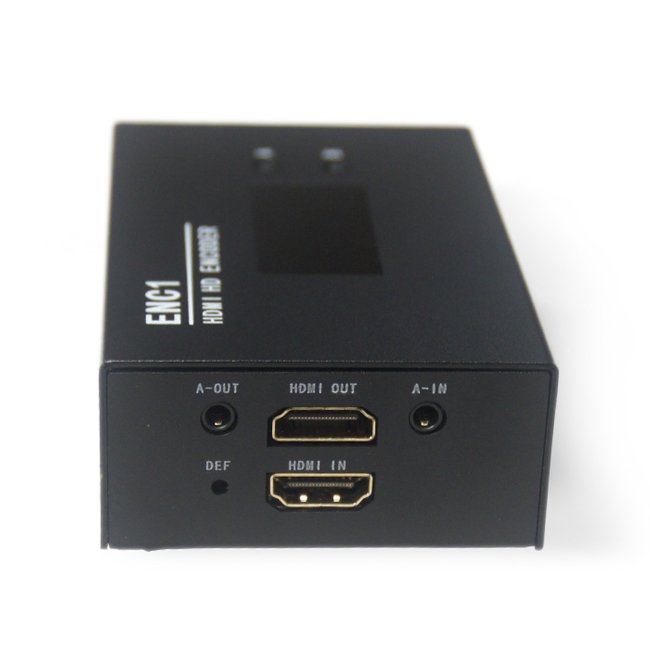

| Video parameter | Input interface HDMI 1.4 Maximum support 1080P@60fps
Output HMDI1.4×1 Signal source resolution:1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Coded format  H.264 Baseline profile Coding resolution Main 1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Sub 720P,360P Frame rate 1-60 adjustable Multiple reference frame SmartP,DualP Maximum rate 40Mbps Rate control CBR,VBR,AVBR,FIXQP,QPMAP |
| Audio parameters | Input interface:HDMI,3.5mm Line-in( Audio can be used simultaneously)
Output interface:HDMI,3.5mm Line-out( Audio can be used simultaneously) Sampling rate 48K,44.1K,32K,16K,8K Coded format AAC,MP3,MPEG2,PMCA,PMCU |
| Network Parameters | Lan interface 10M,100M,1000M RJ45
Transport protocols SRT,NDI,RTSP,RTMP,RTMPE,HTTP,HLS,UDP,unicast,multicast ONVIF positive |
| File Storage | Memory interface USB
Recording format MP4,TS,FLV,MOV,MKV,AVI |
| Basic parameter | Power supply DC 12V 1A

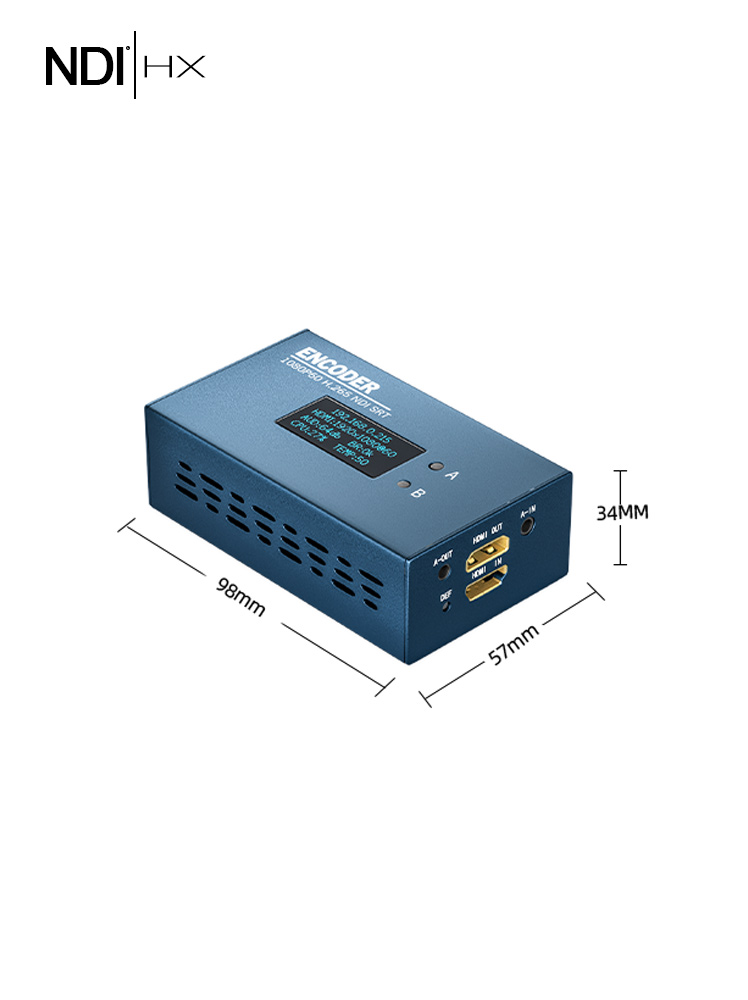

Power dissipation <4W Operating temperature 0-70℃ Size 100x65x32（mm） package size 155x153x52(mm) Net weight 0.37KG Gross weight 0.45 |
| Software function | Basic function WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,
Password management Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp Resource management Customize font, upload watermark Logo picture |
Application Range
- Network video and audio broadcast based on IP protocol.
- Suitable for all kinds of video conference software developers, system developers to do the acquisition end
- Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
- Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
- Applicable to video live broadcast business of government, media industry and other portal websites
- Suitable for remote monitoring in public places and important monitoring areas
- Suitable for remote monitoring of military exercises and two-way audio-visual communication
NDI is a registered trademark of Newtek
