Hdmi 4K h 265 video converter for ENC2 Pro codec h265 or codec h264 best hevc live video streaming decoder

ENC2 Pro Hdmi 4K h 265 video converter which is studied, It is a 2 channel of 4K 60P embedded video and audio hardware encoder and converter. ENC2 Pro Hdmi 4K h 265 video converter can receive external (for example: live stream from a surveillance camera RTSP ://192.168.2.168:9988) h 265,h 264 live streaming, after ENC2 Pro hardware chip decoding, the working process of secondary coding through the chip is called hardware decoding and coding. Usually the industry calls this process transcoding(such as h 265 to h 264 video converter, or made to file that you want).

    Description

    About streaming media video and audio hardware converter technical description

    1. When we are streaming live video and audio over the Internet, in the IPTV solution, ENC2 Pro Hdmi 4K h 265 video converter can receive external (for example: live stream from a surveillance camera RTSP ://192.168.2.168:9988) h 265,h 264 live streaming, after ENC2 Pro hardware chip decoding, the working process of secondary coding through the chip is called hardware decoding and coding. Usually the industry calls this process transcoding(such as h 265 to h 264 video converter, or made to file that you want).(As shown in figure 2.1)

    2.IPTV solutions include client devices such as set-top boxes, hardware decoders, mobile phones and computers. Focus on explaining the set-top box and hardware decoder, They work by converting the live video and audio streaming data packets of h 265,h 264 over the Internet into digital video signals through the decoding chip. this process we also called hardware converter (such as Decoder H9110D).(As shown in figure 2.2)

    ENC2 Pro Hdmi 4K h 265 video converter which is studied, developed and manufactured independently by Guangzhou JLONvision is a 2 channel of 4K 60P embedded video and audio hardware encoder and decoder. It applies H 265 and H 264 encoding and decoding standard (this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode(decoding)2 channels of 4K 60fps H 265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H.264 encoding algorithm, ENC2 Pro hdmi 4K h 265 video converter can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.

    ENC2 Pro hdmi 4K h 265 video converter applies mini design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on B S configuration structure; management and configuration are done by this web-page in the long –distance without being supervised by human.

    ENC2 Pro codec h 265 and h 264 of video encoding formats are supported, Supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol NDI,SRT,HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.

    ENC2 Pro H 265 codec supports h265 conversion H264 video live streaming, it supports 2-8 channel video live streaming conversion.

    Technical Features

    • Embedded hardware encoder
    • H 265,H 264 Main profile
    • Video input format 4K 60P,1080P,720P,D1
    • Video output format 4K 60P,1080P,720P,D1(Signal source mixed output)
    • Support High-bandwidth Digital Content Protection (HDCP)
    • Audio output format AAC,MP3,PCMA,MPEG-2
    • Resolution 4K 60fps(3840*2160),1080P,720P,360P,3392×2008,2560×1440,2304×1296,2048×1080,1680×1056,1024×576,850×480,720×576,720×480,640×480,360×240
    • Support 2-channel online monitoring function
    • Support CBR,VBR,AVBR
    • Highest code rate 200Mbps
    • Automatic scene change detection technology, improve the coding effect
    • Every channel is inserted with de-interlacing scanning algorithm
    • ENC2 Pro codec can use space pre-treatment and block filtering technology for moving scenes
    • ENC2 Pro codec can do the recording duringthe set time and save the recorded files in the
    • With dongle function, Monitor safe operation
    • Support a variety of common platforms at home and abroad such as wowza, FMS, youtube,facebook,NJ and so on

    Topology diagram of the overall scheme

    Product Advantages

    • SOC chip is even more powerful
    • Mini design is easy to carry
    • 2x4K 60fps of image effect is more exquisite
    • Strong system stability
    • Low cost of maintenance
    • 7×24 non-stoping work
    • Multi-media platforms

    Software configuration picture



    Technical Specification Table

    Product Parameter
    Key Performance CPU ARM Cortex A73 Dual@ 1.6GHz

    ARM Cortex A53 Dual@ 1.2GHz

    ARM Cortex A53 Single@ 1.2GHz

    Internal storage 4GB DDR4L

    Flash 8GB eMMC

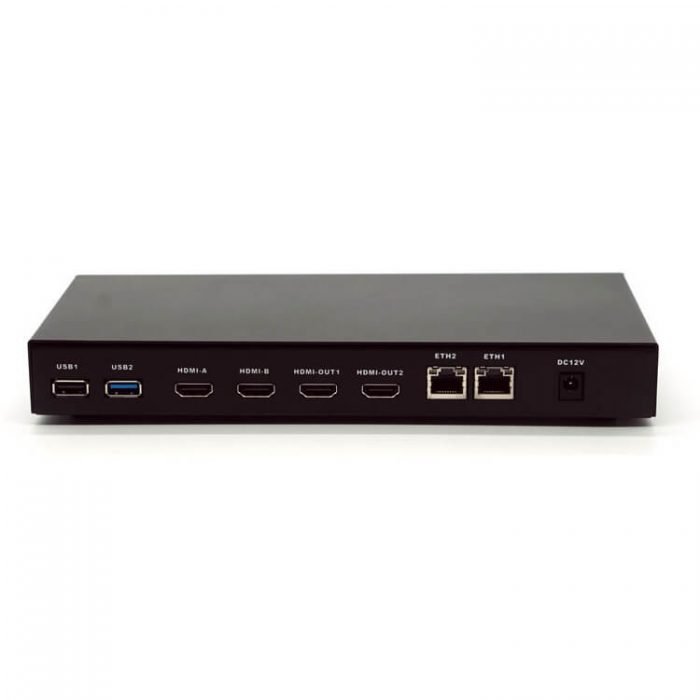

    Video parameter Input interface 2xHDMI 2.0 Maximum support 4K 60fps

    Output interface 1xHDMI support 4K 60fps

    Resolution 4K 60fps(3840×2160),1080P,720P,360P,3392×2008,2560×1440,2304×1296,2048×1080,1680×1056,1024×576,

    850×480,720×576,720×480,640×480,360×240

    Coded format  H.264 Baseline profile
    H.264 Main profile
    H.264 High profile
    H.265 Main profile

    H.265 Main 10 profile
    MJPEG JPEG Baseline

    Coding resolution Main 4K 60fps(3840×2160),1080P,720P,360P,3392×2008,2560×1440,2304×1296,2048×1080,1680×1056,

    1024×576,850×480,720×576,720×480,640×480,360×240

    Sub 1080P,720P,360P

    Frame rate 1-60 adjustable

    Multiple reference frame SmartP,DualP

    Maximum rate 200Mbps

    Rate control  CBR,VBR,AVBR

    Audio parameters Input interface HDMI

    Sampling rate 48K,44.1K,32K,16K,8K

    Coded format AAC,MP3,MPEG2,PMCA,PMCU

    Network Parameters Lan interface 10 100M 1000M RJ45

    Wireless interface Optional dual frequency wifi module

    Transport protocols  NDI,SRT,RTSP,RTMP,RTMPE,RTMPS,HTTP,HLS,UDP,unicast,multicast

    Basic parameter Power supply  DC 12V 2A

    Power dissipation <8W

    Operating temperature 0-70℃

    Size 236x123x32(mm)

    File Storage Memory interface TF Card

    Recording format MP4,TS,FLV,MOV,MKV,AVI

    Software function  Basic function  WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,

    Password management

    Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp

    Resource management  Customize font, upload watermark Logo picture

    Application Range

    • Network video and audio broadcast based on IP protocol.
    • Suitable for all kinds of video conference software developers, system developers to do the acquisition end
    • Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
    • Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
    • Applicable to video live broadcast business of government, media industry and other portal websites
    • Suitable for remote monitoring in public places and important monitoring areas
    • Suitable for remote monitoring of military exercises and two-way audio-visual communication
