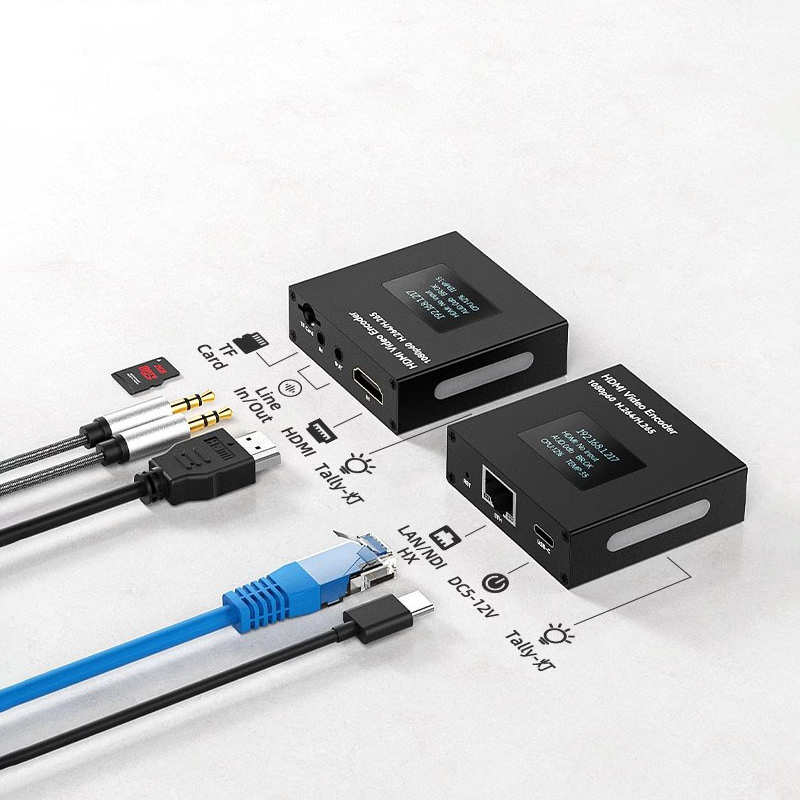

MiniENC1 1080P60fps video audio encoder is an upgraded version of TonyENC1. Its core video and audio encoder is more powerful, and the standalone video and audio encoder adds an OLED display to make it more convenient for users to use it. The more interesting feature of MiniENC1 is that it can be converted into a USB capture card mode.
[contact-form-7 id="1003" title="Contact"]
1080P60fps video audio encoder for MiniENC hevc hdmi video compressor 1080P best mini video converter
Description
MiniENC1 1080P60fps video audio encoder is an upgraded version of TonyENC1. Its core video and audio encoder is more powerful, and the standalone video and audio encoder adds an OLED display to make it more convenient for users to use it. The more interesting feature of MiniENC1 is that it can be converted into a USB capture card mode.
1080P60fps Here is a comparison table of parameters of MinENC1 products of the same type
| Product |
MINIENC1 |
TinyENC1 |
ENC1-V3 |
|---|---|---|---|
| Core Chip | HI3516CV610 | HI6516E | 22AP10 |
| HDMI IN | 1 | 1 | 1 |
| HDMI OUT | X | X | 1 |
| Input Resolution | 4K30 | 1080P60 | 4K30 |
| Output Resolution | X | X | 4K30 |
| Maximum coding capacity(Note 1) | 1080P60 | 1080P30 | 1080P30 x 4 |
| Decoding capability(Note 1) | Χ | Χ | 1080P30 x 4 |
| Turn into a capture card | √ | Χ | Χ |
| Tally Light | √ | Χ | Prolongable |
| Status Display Screen | LCD | Χ | OLED |
| Hot Boot Extension | Prolongable | Χ | DIY |
Note 1:The encoding/decoding processing power is based on 1080P30 as a reference unit and can be converted to other frame rates or resolutions such as 1080P30x2≈1080P60, 1080P30x4≈4K30, and so on.
MiniENC1 supports h.265 and h.264 of video encoding formats, Supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.
MiniENC1Â Mini 1080P60fps video audio encoder supports 1 channel real-time transcoding function.
Technical Features
- Embedded hardware encoder
- H 265,H 264 Main profile
- Signal source resolution 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Audio output format AAC,MP3,PCMA,MPEG-2
- Coding Resolution: 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Support CBR,VBR,AVBR,FIXQP,QPMAP
- Highest code rate 80Mbps
- Automatic scene change detection technology, improve the coding effect
- Every channel is inserted with de-interlacing scanning algorithm
- MiniENC1 1080P60fps video audio encoder can use space pre-treatment and block filtering technology for moving scenes
- MiniENC1 1080P best mini video converter can do the recording during the set time and save the recorded files in the networks.
- With dongle function, Monitor safe operation
- Support a variety of common platforms at home and abroad such as wowza, FMS, youtube,facebook,NJ and so on

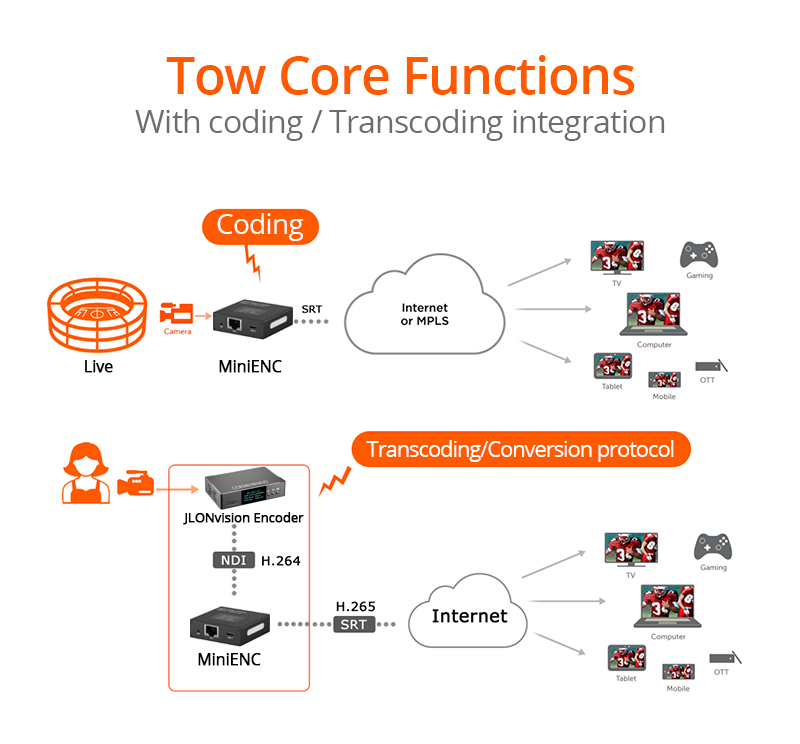

Topology diagram of the overall scheme
Product Advantages
- SOC chip is even more powerful
- Mini design is easy to carry
- 1080P of image effect is more exquisite
- Strong system stability
- Low cost of maintenance
- 7×24 non-stoping work
- Multi-media platforms

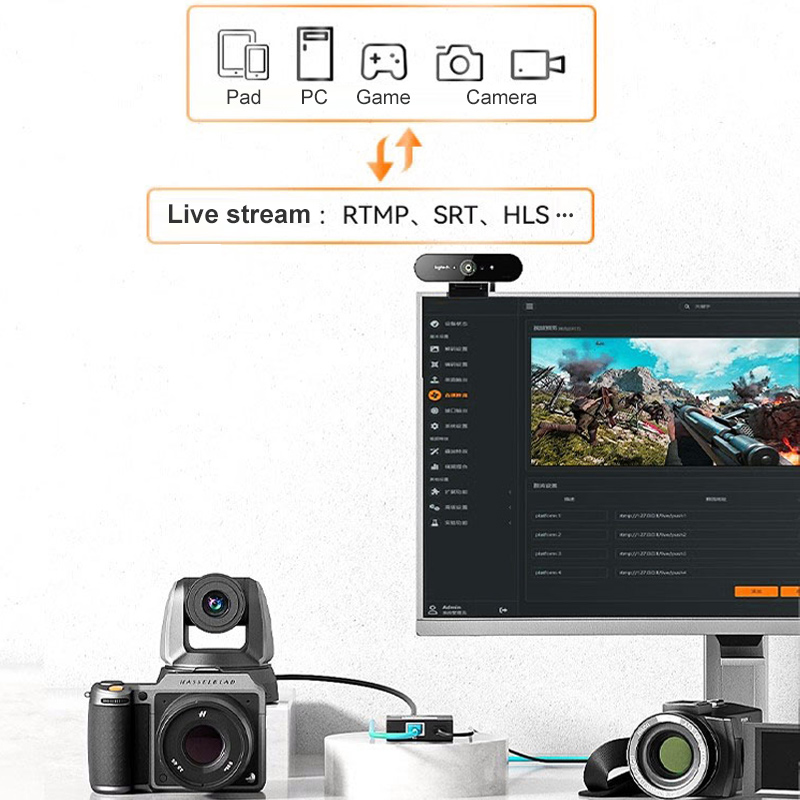

Software configuration picture
Technical Specification Table
| Product Parameter | |
|---|---|
| Key Performance | CPU:ARM Cortex-A7 MP2@950MHz,32KB-Cache,32KB D-Cache
Internal storage:128MB DDR3 Flash:128MB SPI Nand Flash |

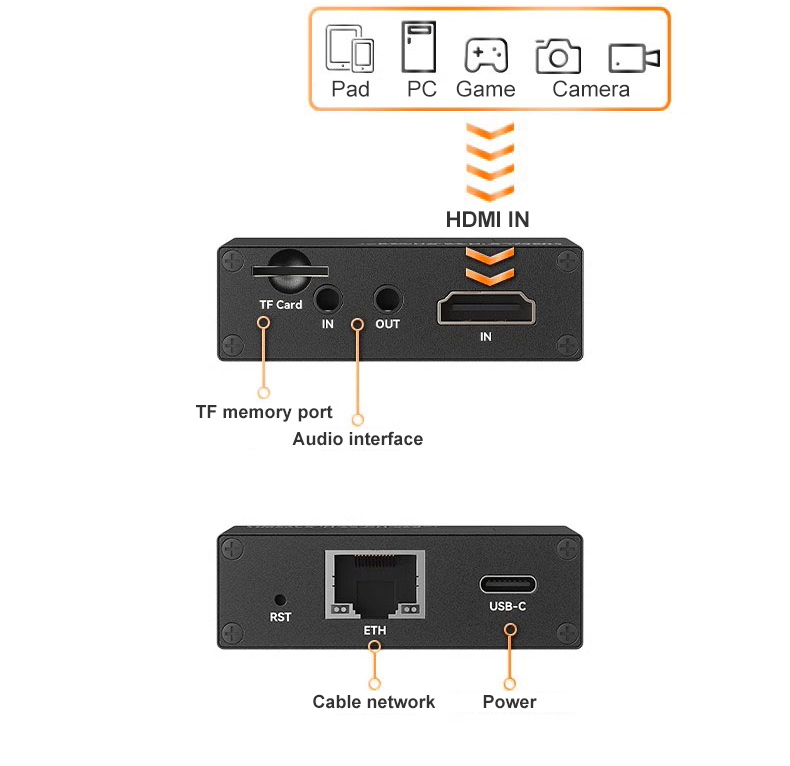

| Video parameter | Input interface HDMI 1.4 Maximum support 4K@30
Signal source resolution:4K30,1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Coded format Coding resolution Main 1080P 60fps,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Sub 720P,360P Frame rate 1-60 adjustable Multiple reference frame SmartP,DualP Maximum rate 80Mbps Rate control CBR,VBR,AVBR,FIXQP |
| Audio parameters | Input interface:HDMI 1.4,3.5mm Line-in( Audio can be used simultaneously)
Sampling rate 48K,44.1K,32K,16K,8K Coded format AAC,MP3,MPEG2,PMCA,PMCU |
| Network Parameters | Lan interface 10M,100M RJ45
Transport protocols SRT,RTSP,RTMP,RTMPE,RTMPS,HTTP,HLS,UDP,unicast,multicast ONVIF positive |
| Basic parameter | LCD display displays the working status

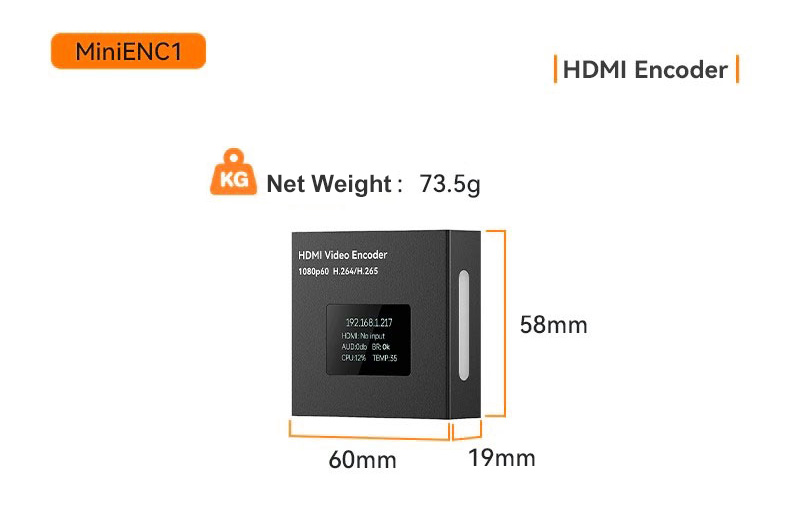

Support Tally light and working status display dual side lights Power supply USB-C or DC 5V 1A Power dissipation <5W Operating temperature 0-70℃ Size 60x58x19(mm LxWxH) package size 155x70x22(mm) Net weight 0.0735KG |
| Software function | Basic function WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,
Password management Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp Resource management Customize font, upload watermark Logo picture |

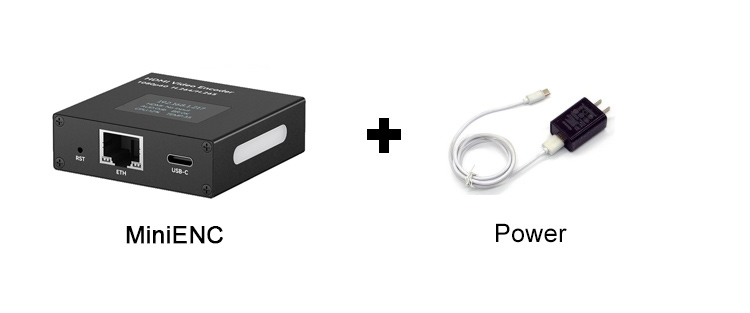

Package content
Application Range
- Network video and audio broadcast based on IP protocol.
- Suitable for all kinds of video conference software developers, system developers to do the acquisition end
- Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
- Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
- Applicable to video live broadcast business of government, media industry and other portal websites
- Suitable for remote monitoring in public places and important monitoring areas
- Suitable for remote monitoring of military exercises and two-way audio-visual communication
