ENC45G supports 3xsim 4G card or 2xsim 4G+1 5G multi-link aggregated HD video encoder, it supports HEVC and h.264 AVC encoding algorithms, and is compatible with NDI®| HX. Therefore, it can achieve high quality, low bit rate, low latency IP network broadcast video stream, it supports 1 channel 4K coding function, of course, it is also a good live stream coder, such as RTMP to NDI, SRT, RTSP to NDI(optional), HTTP to NDI(optional) and so on.
5G 4G bonding encoder network aggregation live broadcast push stream live video return network status monitoring outdoor live conference lecture
Description
ENC45G supports 3xsim 4G card or 2xsim 4G+1 5G multi-link aggregated HD video encoder, it supports HEVC and h.264 AVC encoding algorithms, and is compatible with NDI®| HX. Therefore, it can achieve high quality, low bit rate, low latency IP network broadcast video stream, it supports 1 channel 4K coding function, of course, it is also a good live stream coder, such as RTMP to NDI, SRT, RTSP to NDI(optional), HTTP to NDI(optional) and so on.

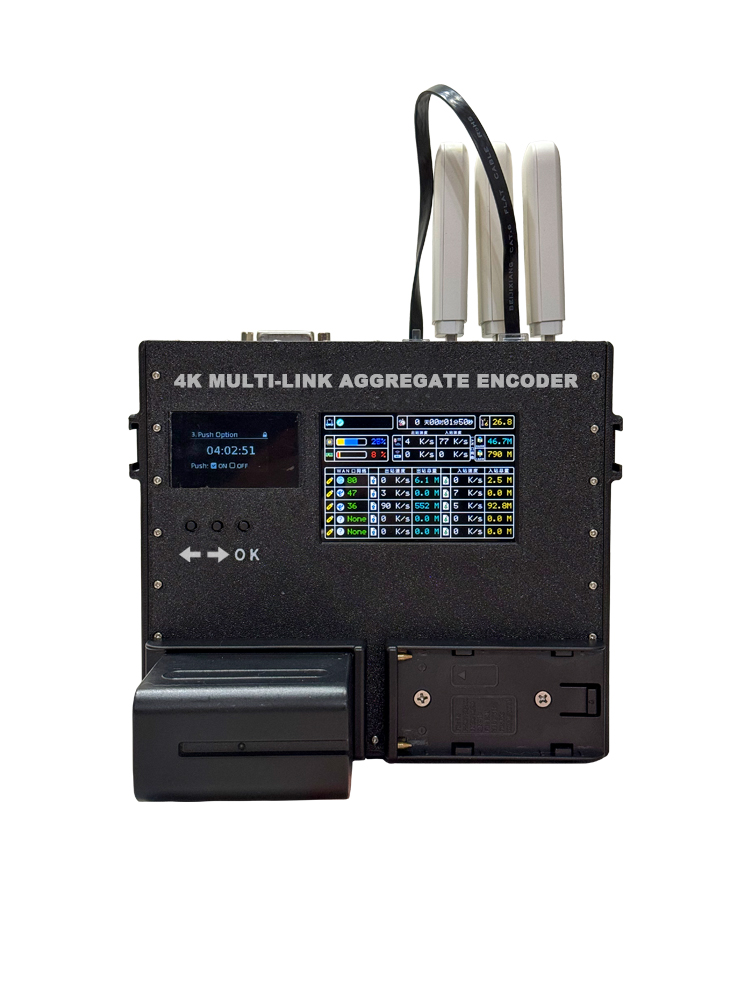

The ENC45G Multi-Link Aggregate video encoder is a single channel 4K@30 embedded hardware encoder and decoder. It can encode and decode single channel 4K(HDMI)H.265 video and stereo audio at the same time, and embed denoising interlacing algorithms to achieve the best level of video quality. Applicable to radio and television operators, telecom operators, governments at all levels, schools, etc.
ENC45G Multi-Link Aggregate video encoder Video Encoder supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol NDI,SRT,HTTP, HLS, RTSP, RTP,RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.
ENC45G Multi-Link Aggregate video encoder can push live video stream to NDI,Facebook(The tutorial), YouTube, Amazon, Twitch, Livestream etc. Multiple platforms.
Technical Features
- Embedded hardware encoder
- H 265,H 264 Main profile
- Signal source resolution 4K,1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Support High-bandwidth Digital Content Protection (HDCP)
- Audio output format AAC,MP3,PCMA,MPEG-2
- Coding and decoding resolution: 4K,1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Supports 1 channel decoding and multiple live streams mix video output
- Support CBR,VBR,AVBR
- Highest code rate 20Mbps
- Automatic scene change detection technology, improve the coding effect
- Every channel is inserted with de-interlacing scanning algorithm
- ENC45G bonding encoder can use space pre-treatment and block filtering technology for moving scenes
- The recording during the set time and save the recorded files in the networks.
- With dongle function, Monitor safe operation
- Support a variety of common platforms at home and abroad such as NDI,wowza, FMS, youtube,facebook,NJ and so on

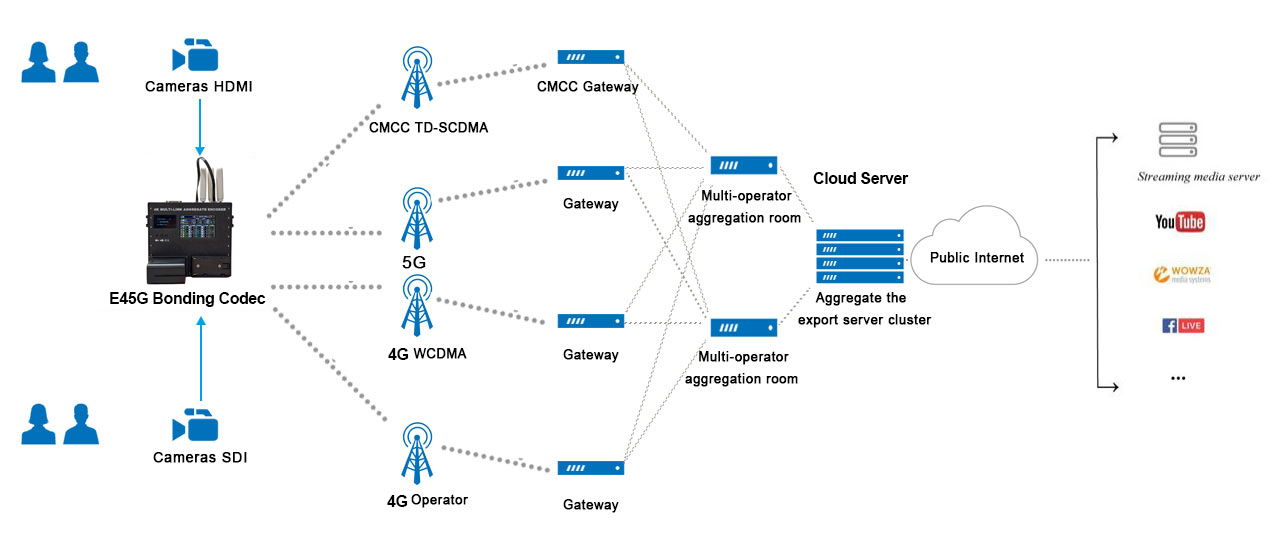

Topology diagram of the overall scheme
Product Advantages
- SOC chip is even more powerful

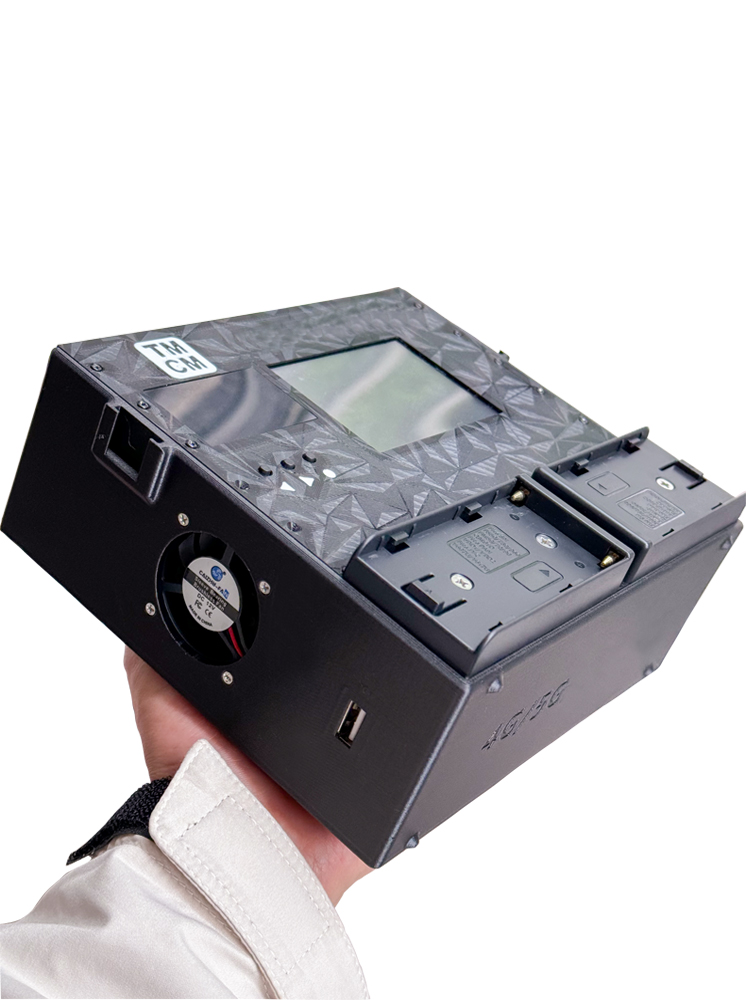

- Mini design is easy to carry
- 4K 30fps of image effect is more exquisite
- Strong system stability
- Low cost of maintenance
- 7×24 non-stoping work
- Multi-media platforms
Software configuration picture
Technical Specification Table
| Product Parameter | |
|---|---|
| Key Performance | CPU:ARM Cortex-A7 Quad core@ 1.2GHz 32KB I-Cache,32KB D-Cache
Internal storage:2GB DDR4 Flash:8GB eMMC |
| Video parameter | Input interface HDMIx 1(4K@30) Output interface HDMI x 1(4K@30) Signal source resolution 3840×2160 30fps 1080P,720P,1080i,720i,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Coded format H 265 Main profile H.264 Baseline profile H 264 Main profile H 264 High profile MJPEG JPEG Baseline Coding and decoding resolution 3840×2160 30fps 1080P,720P,1080i,720i,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Sub 720P,360P Frame rate 1-60 adjustable Multiple reference frame SmartP,DualP Maximum bitrate 20Mbps Rate control CBR,VBR,AVBR,FIXQP,QPMAP |
| Audio parameters | Input interface:HDMIx1 or 3.5mm Line-in x 1( Audio can be used simultaneously)
Output interface:HDMIx1 or 3.5mm Line-out x 1( Audio can be used simultaneously) Sampling rate 48K,44.1K,32K,16K,8K Coded format AAC,MP3,MPEG2,PMCA,PMCU |
| Network Parameters | Up to 6x4G sim card full Netcom, optional -3x4G full Netcom card /2x4G sim card +1x5G card

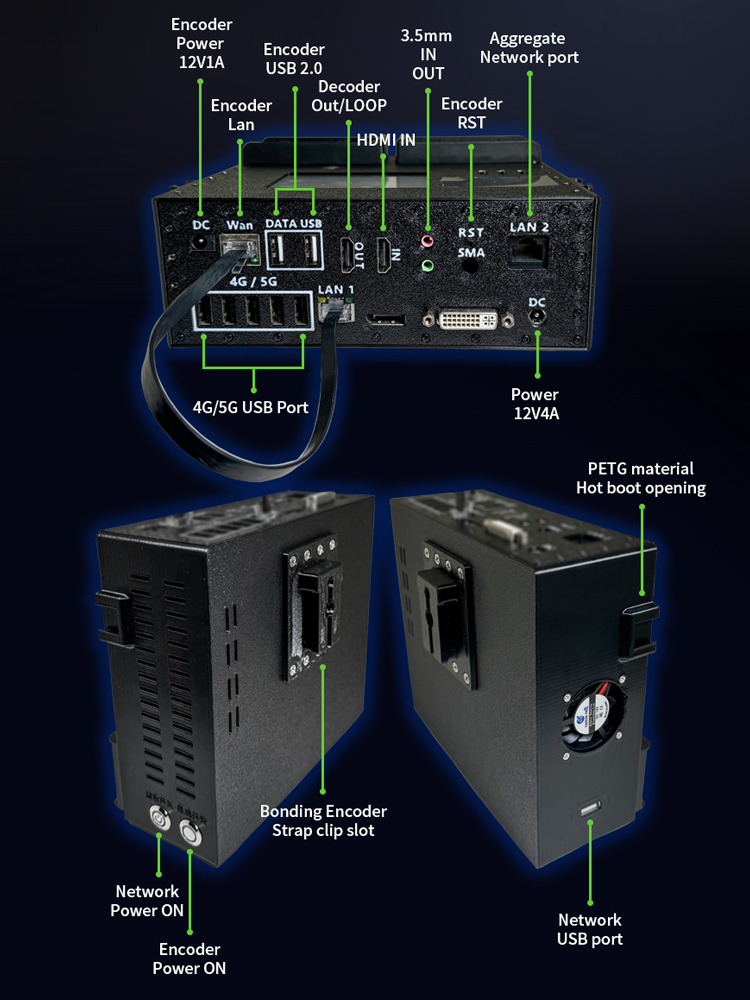

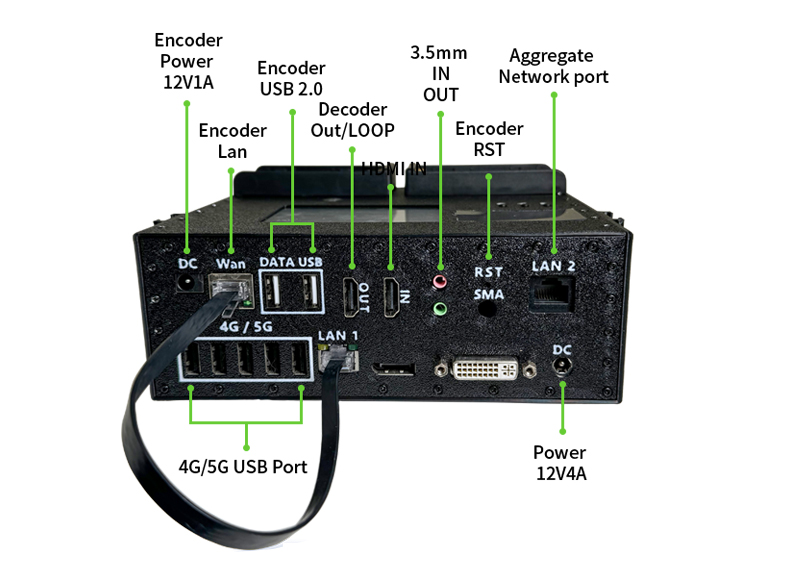

Lan Cable network:The aggregation router has two 100/1000M RJ45 local network ports and the encoder has one 100M network port Built-in WIFI6 wireless network 4G/5G: Support E8372 or 5GCPE(Options) Transport protocols SRT,NDI(optional),RTSP,RTMP,RTMPE,HTTP,HLS,UDP,unicast,multicast ONVIF/GB28181 positive |
| File Storage | Memory interface-USB or LAN mount mode
Recording format MP4,TS,FLV,MOV,MKV,AVI |
| Basic parameter | OLED screen + 3.5-inch LCD screen touch
Power supply DC12V 1A DC 12V 4A Power dissipation <30W Operating temperature 0-70℃ Size 180x125x32(mm) package size 240x190x60(mm) Net weight 1.1KG Gross weight 1.3 KG Dual F970 batteries as standard (for 5-6 hours of continuous live streaming) |
| Software function | Basic function WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,
Password management Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp Resource management Customize font, upload watermark Logo picture |
Application Range
- Network video and audio broadcast based on IP protocol.
- Suitable for all kinds of video conference software developers, system developers to do the acquisition end
- Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
- Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
- Applicable to video live broadcast business of government, media industry and other portal websites
- Suitable for remote monitoring in public places and important monitoring areas
- Suitable for remote monitoring of military exercises and two-way audio-visual communication
NDI is a registered trademark of Newtek
