The ENC5V2 is a professional 5-channel 4K30 HDMI video codec and H.265 hardware encoder mainboard, designed for high-density video encoding, decoding, and IP transcoding applications. It supports 5 channels of 4K 30fps HDMI input plus 1 channel of HDMI output (4K60), delivering broadcast-grade video quality in a compact embedded form factor.

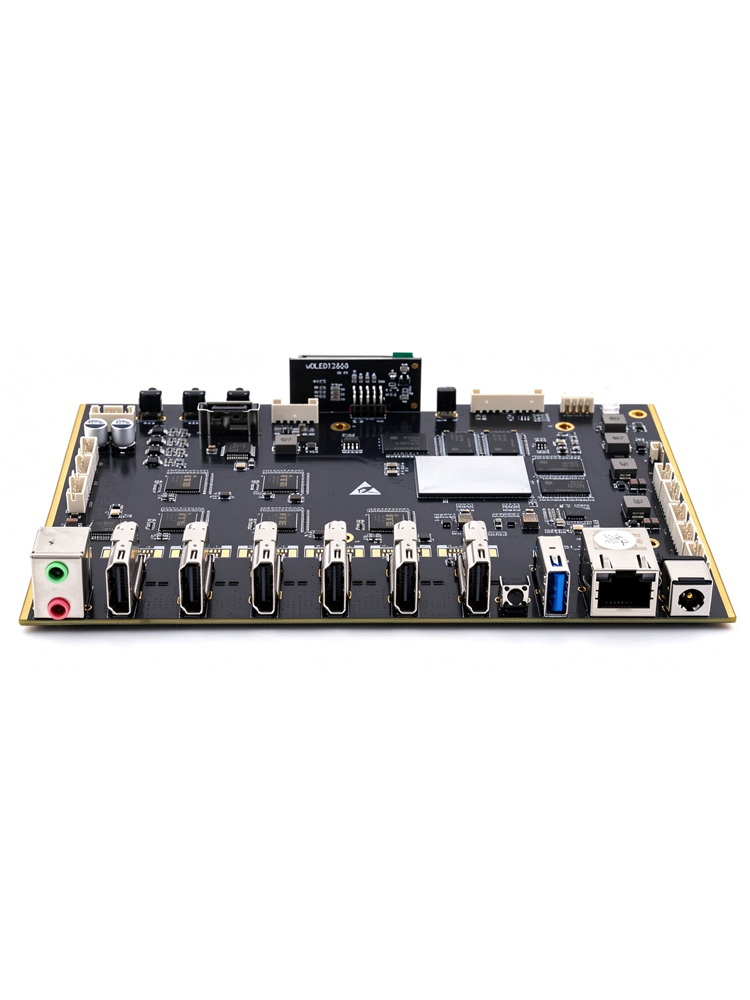

5-Channel 4K30 HDMI Video Codec | H.265 Hardware Encoder Mainboard

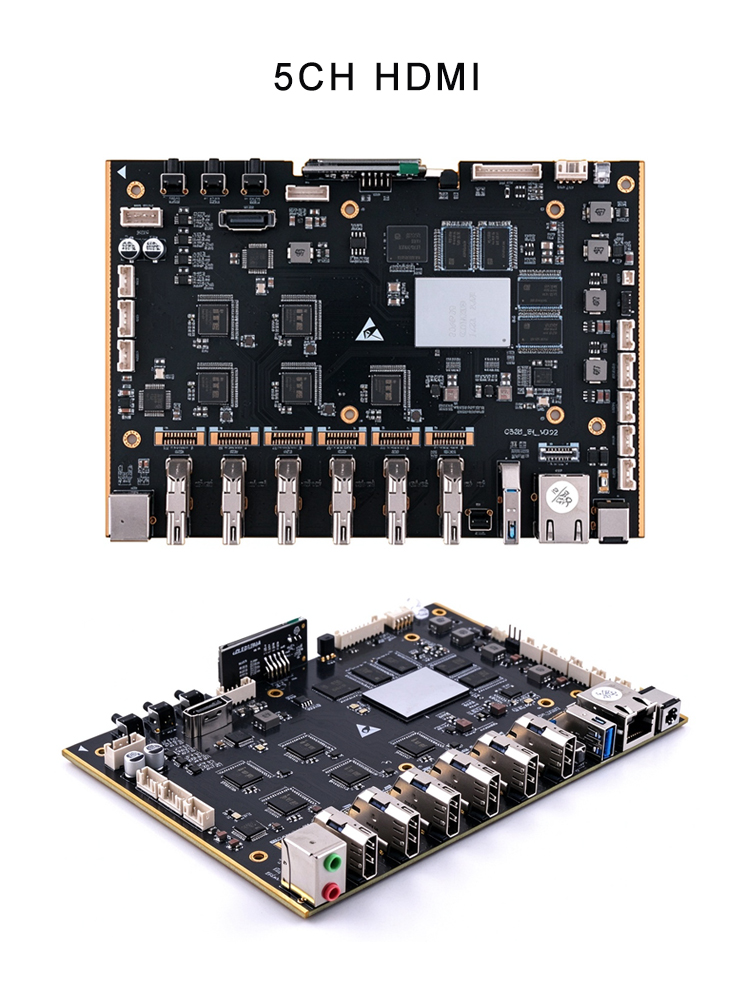

Description
The ENC5V2 is a professional 5-channel 4K30 HDMI video codec and H.265 hardware encoder mainboard, designed for high-density video encoding, decoding, and IP transcoding applications. It supports 5 channels of 4K 30fps HDMI input plus 1 channel of HDMI output (4K60), delivering broadcast-grade video quality in a compact embedded form factor.
Powered by the H.265 Main Profile and H.264 encoding standards (ITU-T and ISO international video coding standards), the ENC5V2 can simultaneously encode 2 channels of 4K 60fps H.265 video with stereo audio. Compared with widely used H.264 solutions, it reduces transmission bandwidth and storage space by 30–50% at the same video quality, significantly lowering operating costs for operators and enterprises.
ENC5V2 EVA provide the Sample program and PQTools.

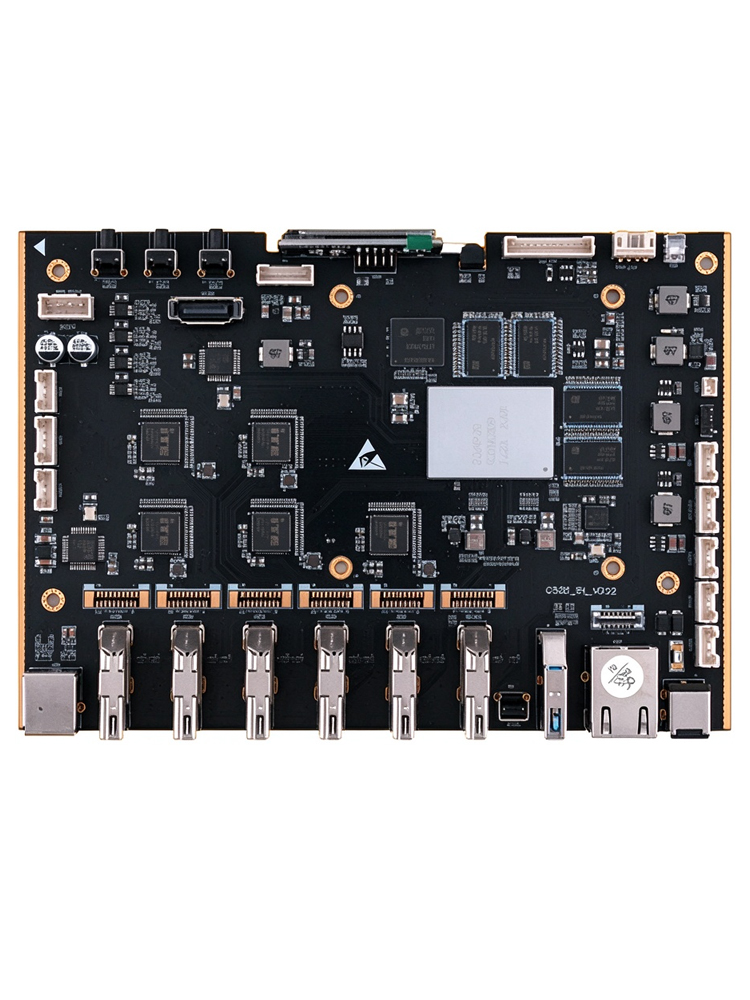

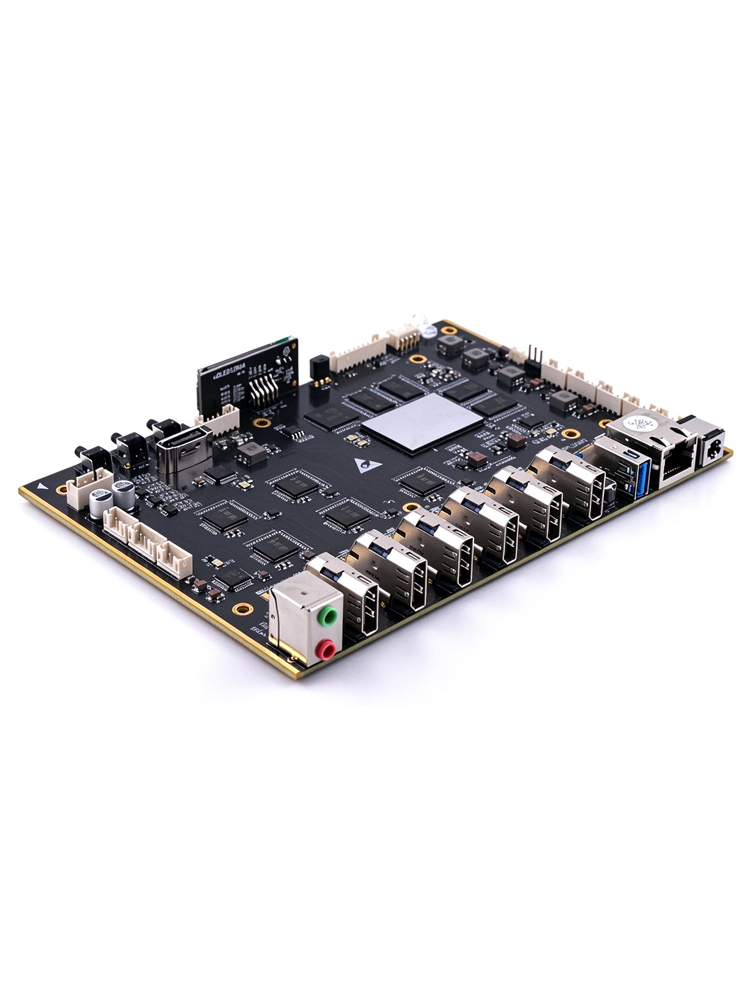

Technical Features
- 5-channel 4K 60fps HDMI input + 1-channel HDMI output (4K)
- H.265 Main Profile & H.264 hardware encoding
- Video input format 4K 60fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
- Support High-bandwidth Digital Content Protection (HDCP)
- Audio output format AAC,MP3,PCMA,MPEG-2
- Resolution 4K 30fps(3840×2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480
- Support one or multi – channel mixed video, so as to achieve the signal source monitoring function.
- Support CBR,VBR,AVBR
- Highest code rate 200Mbps
- Automatic scene change detection technology, improve the coding effect
- Every channel is inserted with de-interlacing scanning algorithm
- 1-channel decoder, convertible to an 8-channel IP transcoder
- H.265 Hardware Encoder Mainboard can do the recording duringthe set time and save the recorded files in the
- With dongle function, Monitor safe operation
- SDK development package and full technical support available

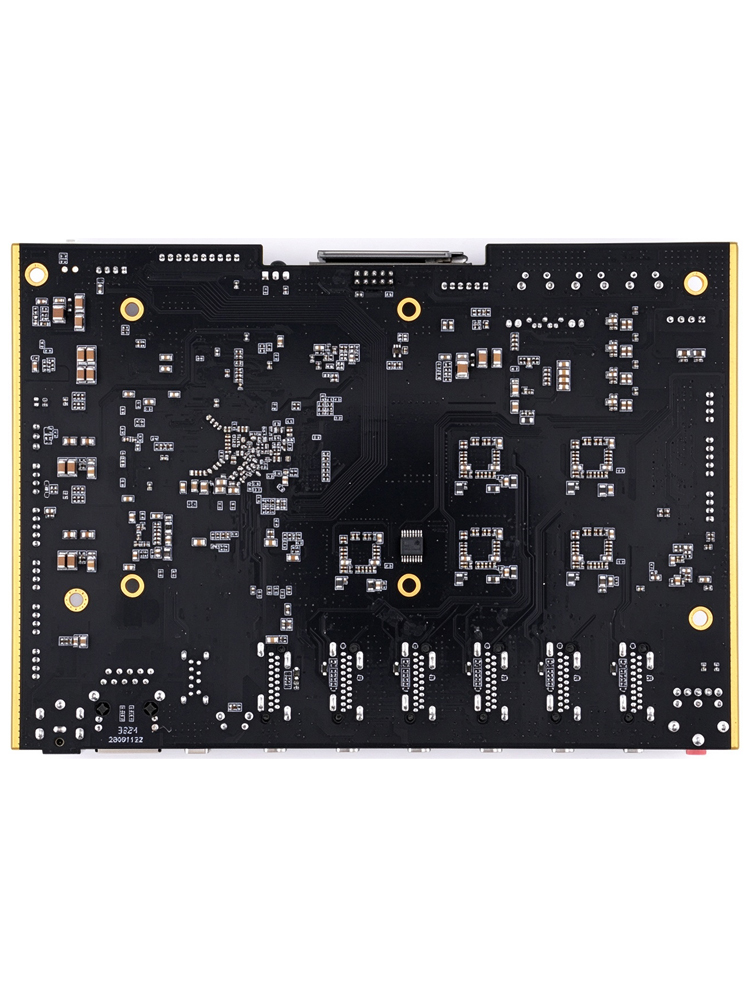

Technical Specification Table
| Product Parameter | |
|---|---|
| Key Performance | CPU ARM Cortex A53 Quad-Core@ 1.2GHz Internal storage 4GB DDR4 Flash 8GB eMMC Nand Flash |
| Video parameter | Input interface 5xHDMI 1.4 Maximum support 4K 30fps The front-mounted HDMI x1 interface supports 4K 60fps, while the built-in VGA connector x1 supports 1080P 60fps. Signal source resolution 4K 60(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480 Coding format H.264 Baseline profile Coding resolution 4K 30(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480 Frame rate 1-60 adjustable Decoding resolution 4K 60(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280x1024x1024x768,800×600,640×480 Multiple reference frame SmartP,DualP Maximum bitrate 20Mbps Bitrate control CBR,VBR,AVBR Maximum encoding/decoding capabilities: – 8x1080P@30 + 8xD1@30 (H.264/H.265 encoding) |
| Audio parameters | Input interface HDMI,Line-in 3.5mm,Line-out 3.5mm Sampling rate 48K,44.1K,32K,16K,8K Coded format AAC,MP3,MPEG2,PMCA,PMCU |
| Network Parameters | Lan interface 1000M RJ45 Wireless interface dual frequency wifi module Transport protocols SRT,NDI,RTSP,RTMP,HTTP,HLS,UDP,unicast,multicast Support ONVIF |
| Basic parameter | Data interface 1xUSB 3.0 and Button x 4 Storage: SATA x 1 Power supply DC 12V 5A Power dissipation <30W Operating temperature 0-70℃ Size 175x100x18(mm LxWxH) package size 300*210*70(mm) Net weight 1.8KG |
| Software function | Basic function WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,Password management Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp Resource management Customize font, upload watermark Logo picture |

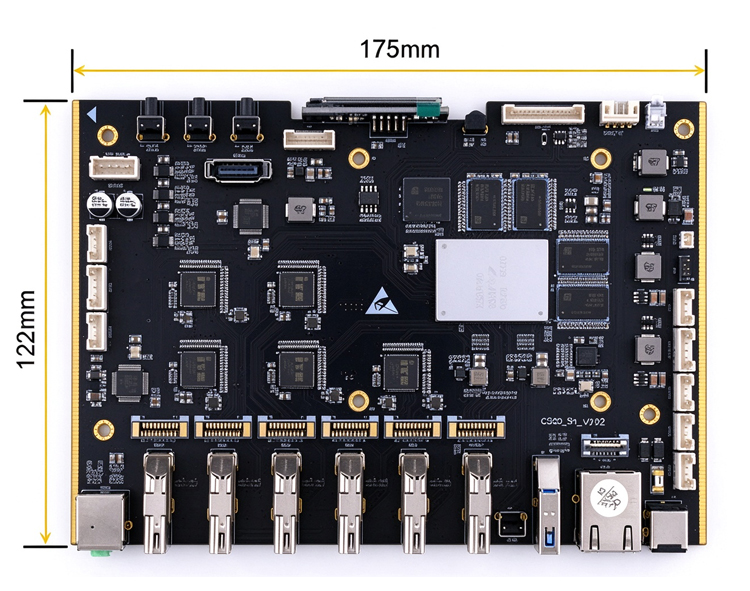

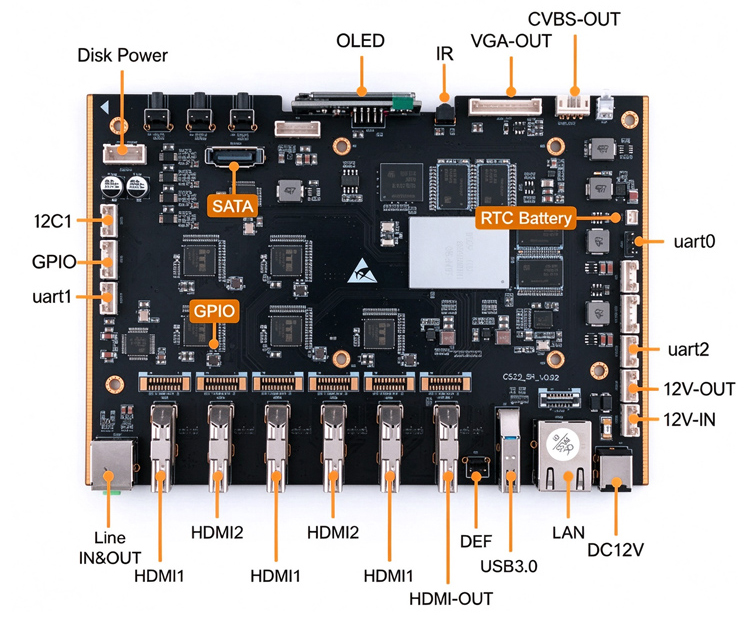

PCB motherboard size
PCB positioning diagram is included in the development materials, please take measurement as the standard
development kit accessory list
| Course Packages | |
|---|---|

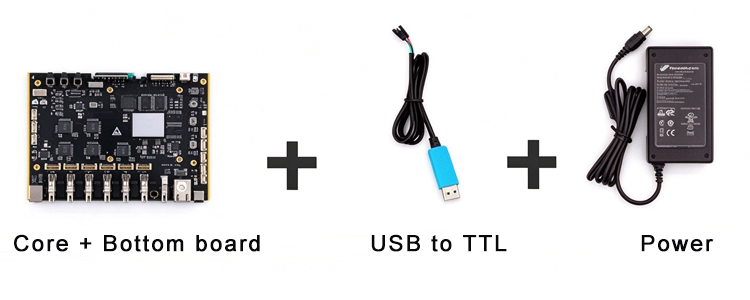

| Basic package | Mainboard + serial line + power |
| 4K camera package | Motherboard + serial line + power + IMX334 module |
| 7 inch screen package | Motherboard + serial line + power + 7 inch screen |
| 5.5 inch screen package | Motherboard + serial line + power + 5.5 inch screen |
| 4G/5G multiple aggregation package | Mainboard + serial line + power supply + 5.5-inch screen + sub-board +3x4G module +5G module |
| Super development kit | Mainboard + serial line + power supply + 5.5-inch screen + sub-board +3x4G module +5G module + 7-inch screen |
Sample tutorial
Our team crafted a rich example of tutorials, they include the audio input and output, audio decoding, screenshots, streaming, recording, video mixing, special effects, USB camera, GPIO operation, power management, touch screen operation, OLED screen control example program, to help you solve to death to all the problems in the process of product development, and we also constantly update example libraries and tutorial content.
Development environment
We have cross-compiled common third-party libraries and placed them in virtual machines for easy development and debugging.
| List | |
|---|---|
| Development framework | QT5 |
| Media related | ffmpeg,fdkaac,lame.alsa |
| Web | php,nginx(nginx-rtmp+http-flv) |
| Network related | iperf,ppp,wpa,hostap,iw,libnl,ssl |
| Graphic processing | opencv,NCNN |
| Other | freetype,icu,libts,zlib,libxml… |
Open source code description
In order to demonstrate the basic capabilities of the evaluation board and make it easy for users to fully evaluate the program before using the development program, we have developed an “encoder system” that can display all the interfaces of the customized development program and its encoding and decoding capabilities through the form of a visual and audio encoder.The product is completely open source, including the main program source code, file system, web source code and so on.
If the user’s target product is similar to the open source product, it can be modified directly from the source code of the product.
| Open source function | |
|---|---|
| Running status | -CPU performance, memory footprint, network status -Interface state, resolution detection -Video preview |
| Encoding setting | Encoding format – h. 264, h. 265,ACC,MP3,PCMA Resolution – 3840 x2160, 1920 x1080, 1280 x720, 640 x360 Others – bit rate control, key frame interval, audio channel Note – all properties support dynamic modification and take effect in real time, no need to restart the device |
| Output Settings | Support the transport protocol – RTSP, RTMP, HLS, HTTP, ONVIF, unicast, multicast, pushing streams |
| Others | Network input – standard stream input is supported and can be streamed or recoded directly Overlay effects – captions, rolling captions, watermarks, tabletops, mosaics Screen mixed audio and video – multiple screen arbitrary layout Mosaic combination, and can be codec output, similar to the broadcast function Computer room monitoring: the camera is inserted through the USB port, which can encode and output live screen for monitoring the situation of the computer room. Meanwhile, it supports the dynamic alarm function. File recording – after the encoder is inserted into the usb flash disk, it can record the channel live stream into the file format and then save it to the usb flash disk. Video rotation – looping the video files on the usb flash drive and generating a live video stream. Group control – all video encoders can automatically group, and they can realize automatic device discovery, IP configuration, program summary and other functions. Any device in the LAN can serve as a media publishing server to provide concurrent live streaming. |
Development mode
This product will be customized and developed directly using the official SDK, and the core hardware is fully compatible with it. You can directly use the official kernel, uboot, etc., without modifying any line of code.
On top of that, Link provides a faster LinkSDK that not only makes learning easier, but also provides richer extension capabilities.
| Hisi SDK | LinkSDK | |
| development language | C | C++,Javascrpit |
| difficulties of thedevelopment | difficult | simple |
| Driver support | None | Contains all common chip drivers |
| memory management | None | support |
| Thread management | None | automatic allocation |
| data encapsulation | None | mp4,mkv,ts etc |
| Streaming support | None | rtsp,rtmp,hls etc |
| Mixing, volume statistics | None | support |
| AAC encoding | None | support , optimized |
REMARKS LinkSDK can be directly free commercial, no extra charge, can be customized according to customer demand new functional components.
