ENC2 H 265 hevc hardware decoder which is studied, It is a 2-channel of 4K embedded video and audio hardware codec.ENC2 can receive external (for example: live stream from a surveillance camera RTSP ://192.168.0.68:8080) h 265,h 264 live streaming, after ENC2 hardware chip decoding, the working process of secondary coding through the chip is called hardware decoding and coding. Usually the industry calls this process transcoding(such as h 265 to h 264 video converter, or made to file that you want).
4K H 265 hevc hardware decoder ENC2 best SRT h 264 h 265 encoder and decoder it is support h 265 to h 264 live streaming video converter
Description
About streaming media video and audio hardware decoding technical description
1. When we are streaming live video and audio over the Internet, in the IPTV solution, ENC2 can receive external (for example: live stream from a surveillance camera RTSP ://192.168.0.68:8080) h 265,h 264 live streaming, after ENC2 hardware chip decoding, the working process of secondary coding through the chip is called hardware decoding and coding. Usually the industry calls this process transcoding(such as h 265 to h 264 video converter, or made to file that you want).(As shown in figure 1.1)
2.IPTV solutions include client devices such as set-top boxes, hardware decoders, mobile phones and computers. Focus on explaining the set-top box and hardware decoder, They work by converting the live video and audio streaming data packets of h 265,h 264 over the Internet into digital video signals through the decoding chip. this process we also called hardware decoding (such as: Decoder H9110D).(As shown in figure 1.2)

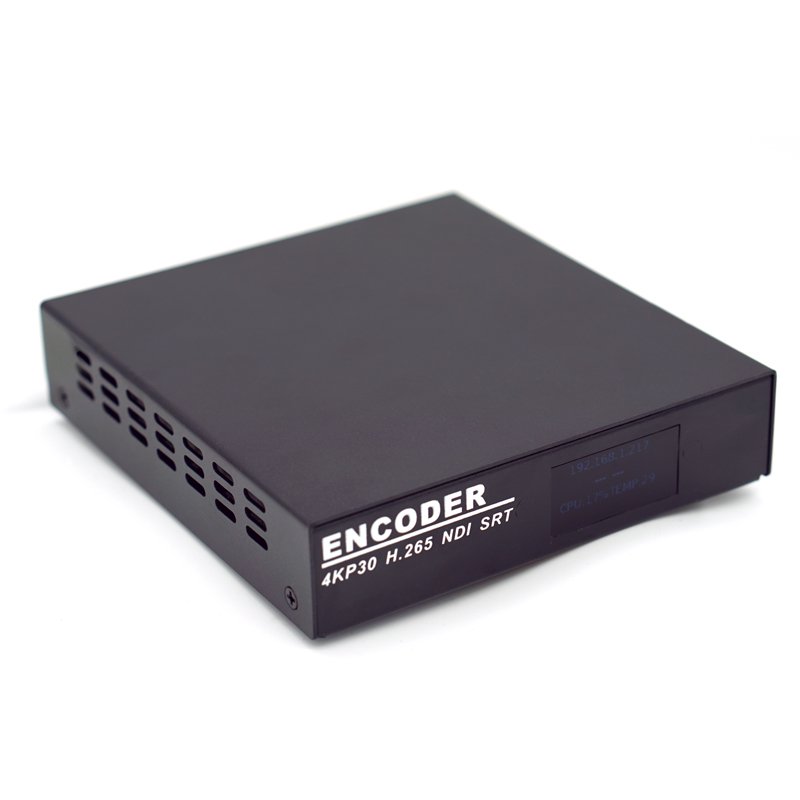

ENC2 H 265 hevc hardware decoder which is studied, developed and manufactured independently by Guangzhou JLONvision is a 2-channel of 4K embedded video and audio hardware codec. It applies H.265 and H.264 encoding and decoding standard(this standard is a digital video encoding standard made out by TTU-T and ISO). With this encoding standard,it can encode 2 channels of 4K H 265 video and stereo audio simultaneously. It is inserted with DE-interlacing scanning algorithm, which makes video quality reach the best level. Compared with the present widely used H.264 encoding algorithm, ENC2 hardware codec can save 30-50% of transmission bandwidth and storage space at the same video quality. It has the advantages of supporting international standards, high performance, flexible configuration and strong scalability. It is suitable for radio&TV operators, telecommunications operators, governments of different levels, and school etc.
ENC2 H 265 hevc hardware decoder applies mini design is easy to carry, embedded OS(embedded operating system), supports 7×24 hours non-stopping work. Its platform is based on B S configuration structure; management and configuration are done by this web-page in the long –distance without being supervised by human.
ENC2 hdmi h 264 h 265 encoder h.265 and h.264 of video encoding and decoding formats are supported, Supported audio encoding formats are AAC, MP3, PCMA, etc, Support live stream protocol NDI,SRT,HTTP, HLS, RTSP, RTMP of flow push, RTMP pull flow, UDP, Multicast network protocol etc. And the one same channel can enable all network streams at the same time.
ENC2 h 265 to h 264 video converter supports h265 conversion H264 video live streaming, it supports 2-8 channel video live streaming conversion.
Technical Features
- Embedded hardware encoder and decoder
- H 265,H 264 Main profile
- Video input format 4K,1080P,720P,D1
- Video output format 4K,1080P,720P,D1
- Support HDCP
- Audio output format AAC,MP3,PCMA
- Resolution 4K 30fps(3840×2160),1080P,720P,360P,3392×2008,2560×1440,2304×1296,2048×1080,1680×1056,1024×576,850×480,720×576,720×480,640×480
- Support 1-channel online monitoring function
- Support CBR,VBR,AVBR
- Highest code rate 40Mbps
- Automatic scene change detection technology, improve the coding effect
- Every channel is inserted with de-interlacing scanning algorithm
- ENC2 H 265 hevc hardware decoder use space pre-treatment and block filtering technology for moving scenes
- ENC2 hdmi h 264 h 265 encoder can do the recording duringthe set time and save the recorded files in the
- With dongle function, Monitor safe operation
- Support a variety of common platforms at home and abroad such as wowza, FMS, youtube,facebook,NJ and so on
Topology diagram of the overall scheme
Product Advantages
- SOC chip is even more powerful
- Mini design is easy to carry
- 2x4K of image effect is more exquisite
- Strong system stability
- Low cost of maintenance
- 7×24 non-stoping work
- Multi-media platforms
Software configuration picture
Technical Specification Table
Product Parameter | |
---|---|
Key Performance | CPU ARM Cortex A9 Dual@ 1.4GHz
Internal storage 2GB DDR3 Flash 256MB Nand Flash |
Video parameter | Input interface 2xHDMI 1.4 Maximum support 4K 30fps
Output interface 1xHDMI Resolution 4K,1080P,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Coded format H.264 Baseline profile Coding resolution 4K 30fps(3840*2160),1080P,720P,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Multiple reference frame SmartP,DualP Maximum rate 40Mbps Rate control CBR,VBR,AVBR |
Audio parameters | Input interface HDMI
Sampling rate 48K,44.1K,32K,16K,8K Coded format AAC,MP3,MPEG2,PMCA,PMCU |
Network Parameters | Lan interface 10M,100M,1000M RJ45
Wireless interface Optional dual frequency wifi module Transport protocols NDI,SRT,RTSP,RTMP,HTTP,HLS,UDP,unicast,multicast ONVIF positive |
Basic parameter | Data interface 1xUSB 3.0

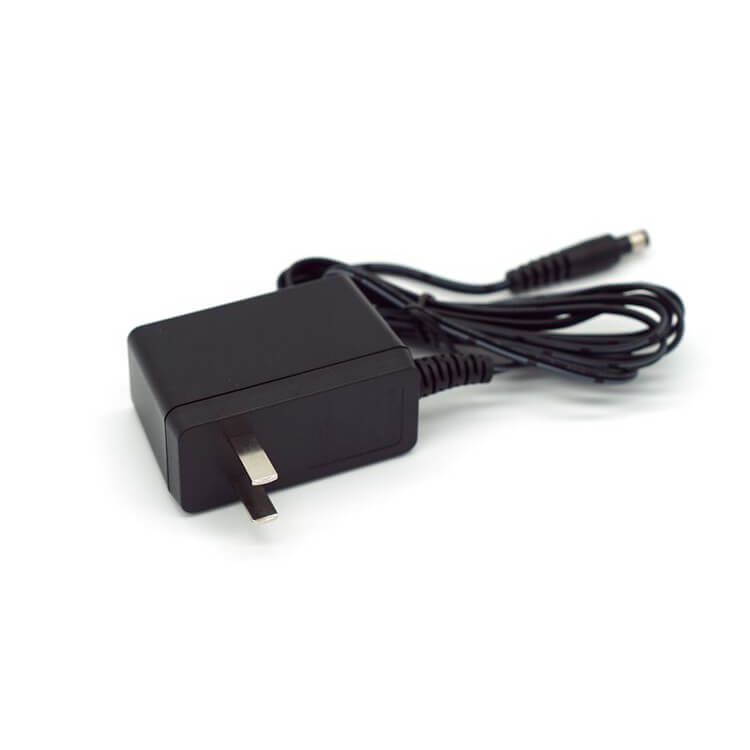

Power supply DC 12V 5A Power dissipation <15W Operating temperature 0-70℃ Size 140x130x30(mm) package size 300x210x70(mm) Net weight 1.1KG |
Software function | Basic function WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,
Password management Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp Resource management Customize font, upload watermark Logo picture |
Application Range
- Network video and audio broadcast based on IP protocol.
- Suitable for all kinds of video conference software developers, system developers to do the acquisition end
- Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
- Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
- Applicable to video live broadcast business of government, media industry and other portal websites
- Suitable for remote monitoring in public places and important monitoring areas
- Suitable for remote monitoring of military exercises and two-way audio-visual communication
