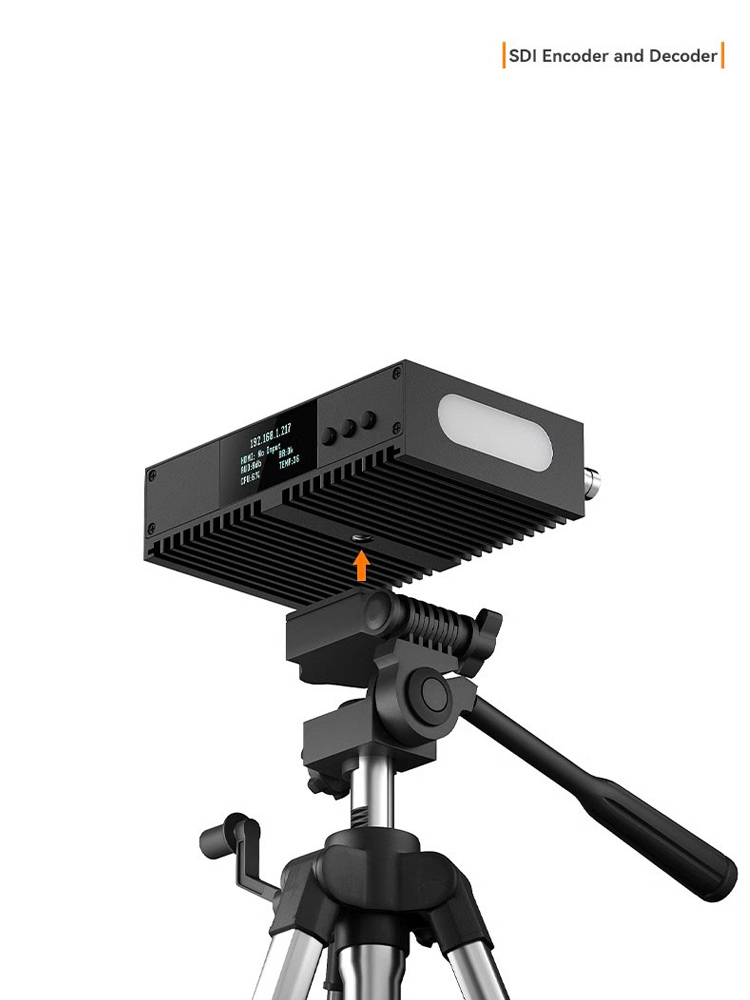

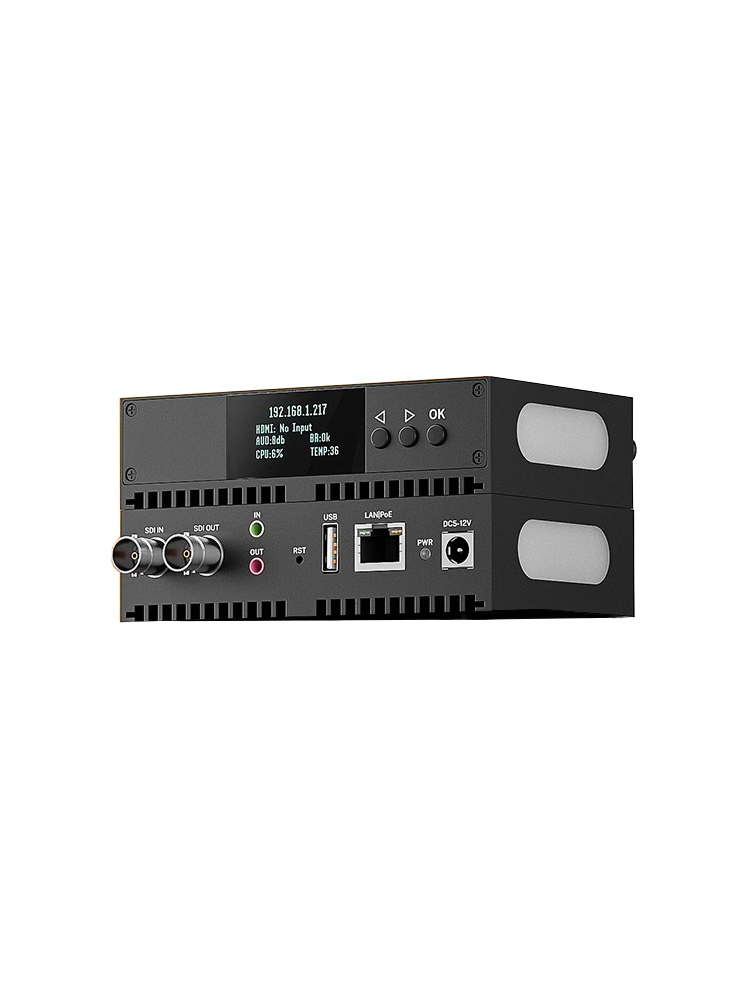

ENCS1 is an HD video codec supporting 3G SDI interface. The core function supports 1 channel 1080P60 video and audio coding and decoding, and the decoding output can also be set to ring output dual function. The whole body of ENCS1 is relatively small, and we have also added the Tally signal light and hot boot interface in the design.
3G SDI 1080p50/60 Streaming Video Server Encoder and decoder the tally signal light
Description
ENCS1 is an HD video codec supporting 3G SDI interface. The core function supports 1 channel 1080P60 video and audio coding and decoding, and the decoding output can also be set to ring output dual function. The whole body of ENCS1 is relatively small, and we have also added the Tally signal light and hot boot interface in the design.
1080P60fps Here is a comparison table of parameters of MinENC1 products of the same type
| Product |
ENCS1 |
ENC1-Plus2 |
ENC4S |
|---|---|---|---|
| Core Chip | 22AP10 | 22AP10 | 22AP10 |
| HDMI IN | X | 1 | X |
| HDMI OUT | X | 1 | X |
| SDI IN | 1 | 1 | 4 |
| SDI OUT(SDI LOOP) | 1 | 1 | 1 |
| SDI Input Resolution | 1080P60 | 1080P60 | 1080P60 |
| SDI Output Resolution | 1080P60 | 1080P60 | 1080P60 |
| Maximum coding capacity(Note 1) | 1080P30 x 4 | 1080P30 x 4 | 1080P30 x 4 |
| Decoding capability(Note 1) | 1080P30 x 4 | 1080P30 x 4 | 1080P30 x 4 |
| Tally Light | √ | Prolongable | Prolongable |
| Hot Boot Slot | √ | Χ | Χ |
| POE(PD) | √ | Χ | Χ |
| 3.5mm Audio Interface | √ | √ | √ |
| USB | 1 | 1 | 1 |
Note 1:The encoding/decoding processing power is based on 1080P30 as a reference unit and can be converted to other frame rates or resolutions such as 1080P30x2≈1080P60, 1080P30x4≈4K30, and so on.
Note 2:SDI LOOP is different from SDI output, SDI LOOP can only ring out the same audio and video data as SDI input port, SDI output outlet can output any channel audio and video data, or network decoded audio and video.
ENC UI has also been updated with another style, which I think is more user-friendly.
Technical Features
- Embedded hardware encoder
- H 265,H 264 Main profile
- Signal source resolution 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Audio output format AAC,MP3,PCMA,MPEG-2
- Coding Resolution: 1080P 60fps,720P, 1600×1200,1440×900,1366×768,1280×1024,1280×768,800×600,640×480
- Support CBR,VBR,AVBR,FIXQP,QPMAP
- Highest code rate 20Mbps
- Automatic scene change detection technology, improve the coding effect
- Every channel is inserted with de-interlacing scanning algorithm
- MiniENC1 1080P60fps video audio encoder can use space pre-treatment and block filtering technology for moving scenes
- MiniENC1 1080P best mini video converter can do the recording during the set time and save the recorded files in the networks.
- With dongle function, Monitor safe operation
- Support a variety of common platforms at home and abroad such as wowza, FMS, youtube,facebook,NJ and so on

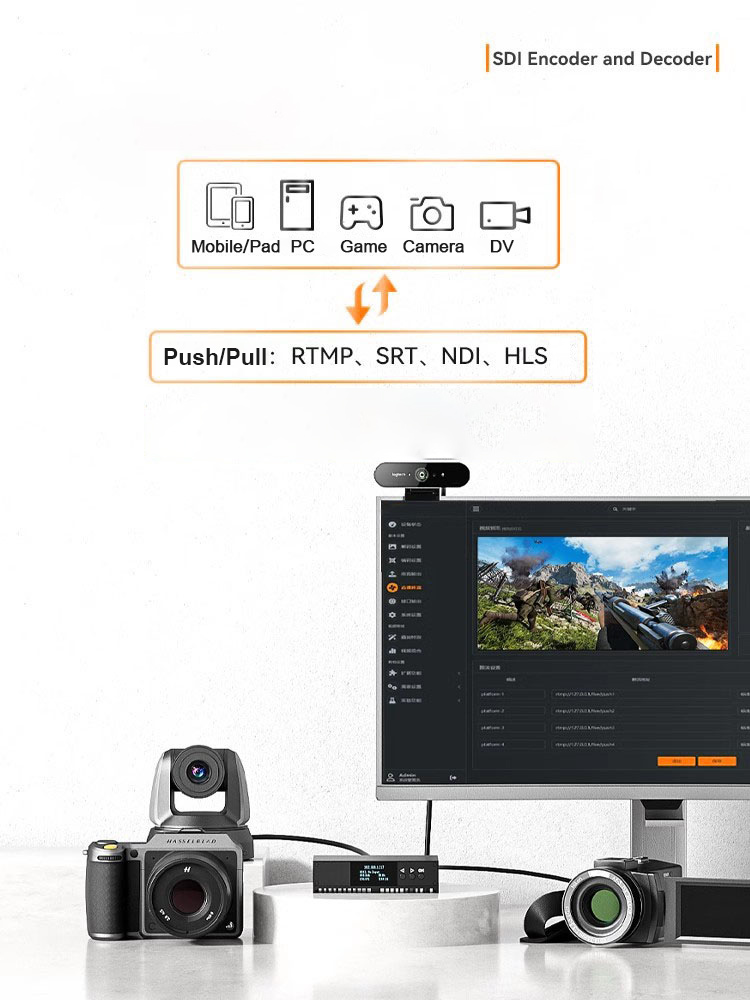

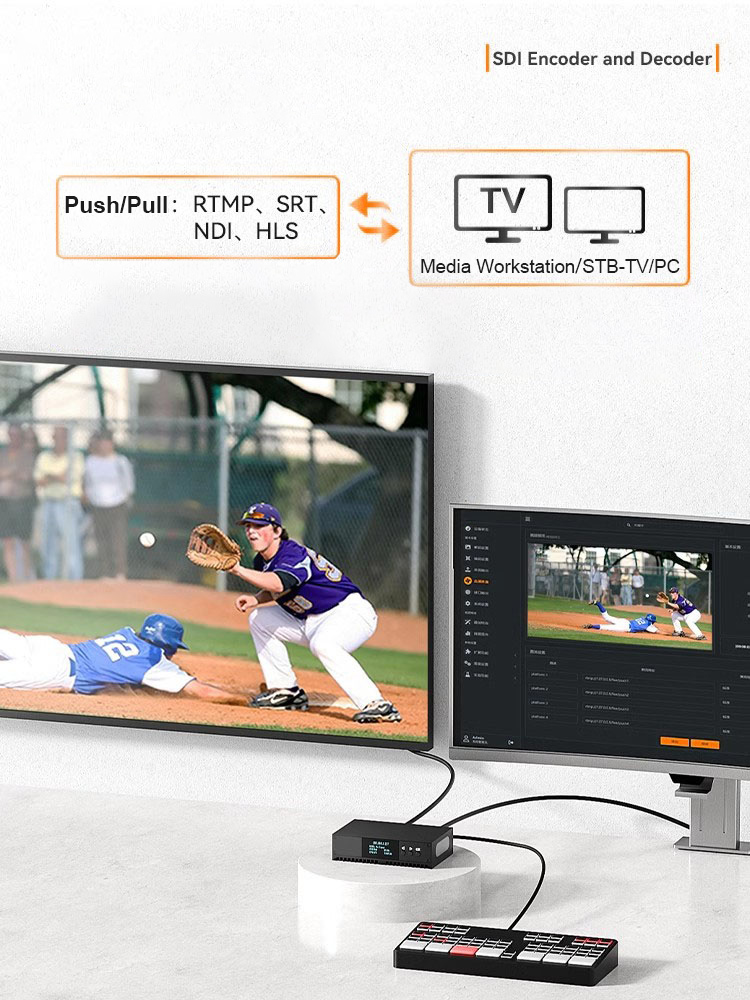

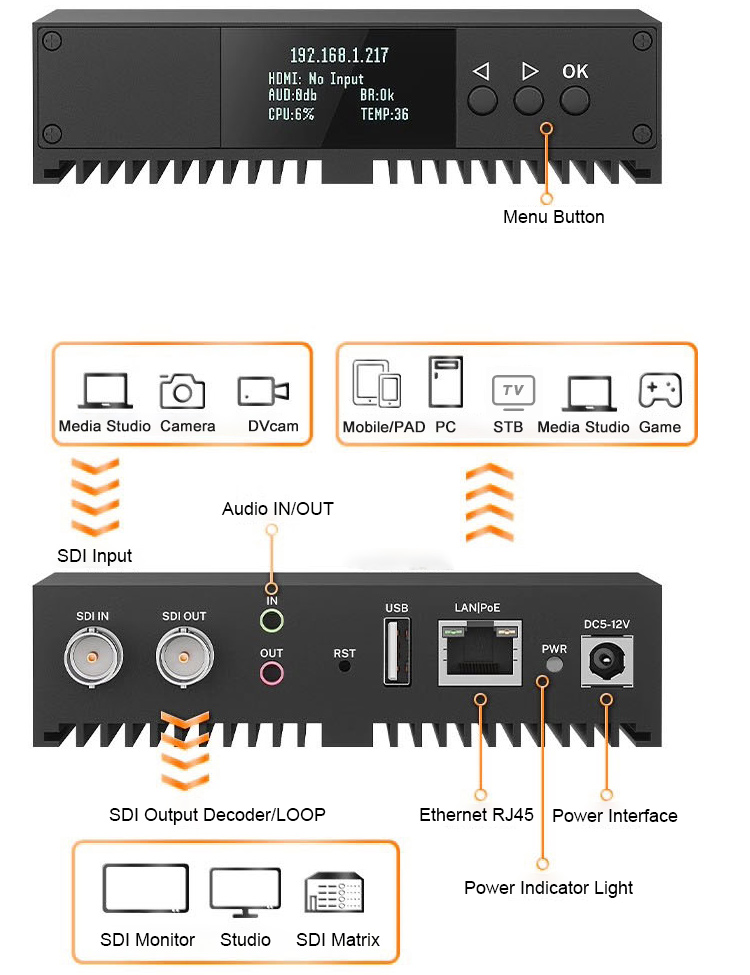

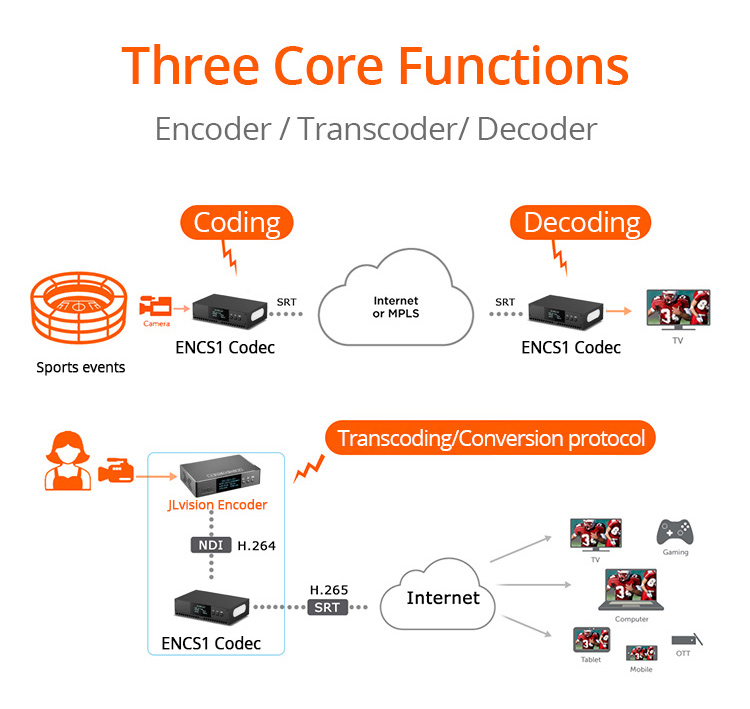

Topology diagram of the overall scheme
Product Advantages
- SOC chip is even more powerful
- Mini design is easy to carry
- 1080P of image effect is more exquisite
- Strong system stability
- Low cost of maintenance
- 7×24 non-stoping work
- Multi-media platforms
Software configuration picture
Technical Specification Table
| Product Parameter | |
|---|---|
| Key Performance | CPU:ARM Cortex-A7 [email protected],32KB-Cache,32KB D-Cache
Internal storage:2GB DDR4 Flash:8GB eMMC |
| Video parameter | Input interface 3G-SDI Maximum support 1080P 60fps
Output interface 3G-SDI Maximum support 1080P 60fps Signal source resolution:1080P 60fps,720P,1080i,720i,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Coded format Coding resolution Main 1080P 60fps,720P,1080i,720i,1600×1200,1440×900,1366×768,1280×1024,1024×768,800×600,640×480 Frame rate 1-60 adjustable Multiple reference frame SmartP,DualP Maximum bitrate 20Mbps Rate control CBR,VBR,AVBR,FIXQP |
| Audio parameters | Input interface:SDI Stereo 48K,3.5mm stereo
Sampling bitrate 48K,44.1K,32K,16K,8K Coded format AAC,MP3,MPEG2,PMCA,OPUS |
| Network Parameters | Lan interface 10M,100M RJ45 Ethernet
Extensible USB wifi Extensible USB 4G/5G module(4G—E8372h,MF833U1 5G—F50,5GCPE) Transport protocols SRT,RTSP,RTMP,RTMPE,RTMPS,HTTP,HLS,UDP,unicast,multicast ONVIF positive |
| Basic parameter | OLED display displays the working status

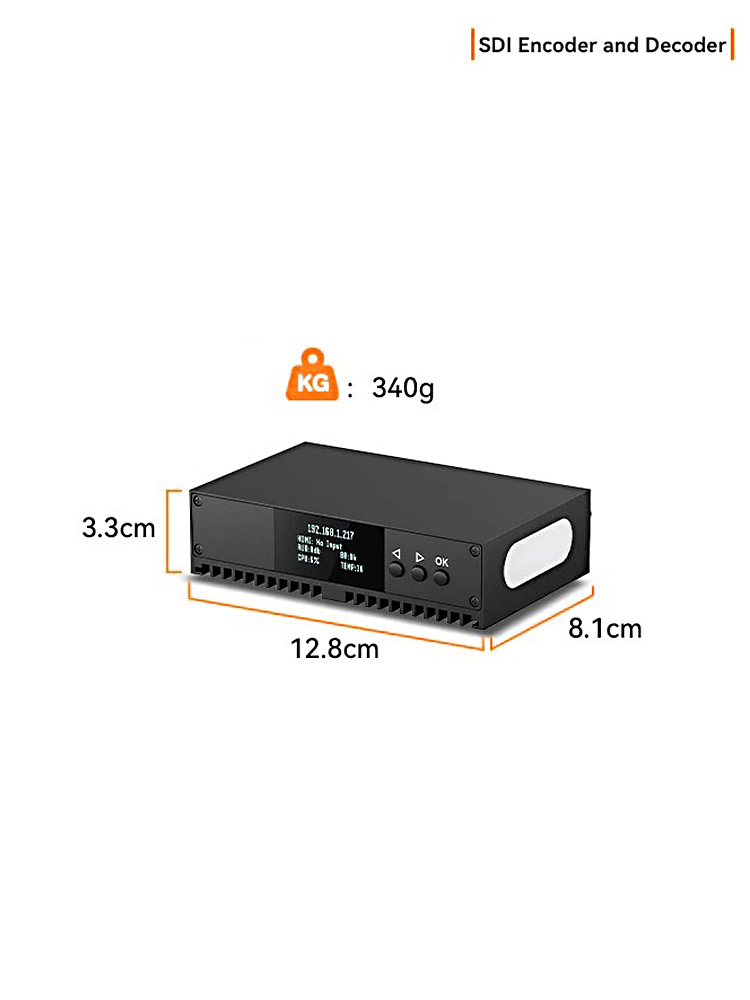

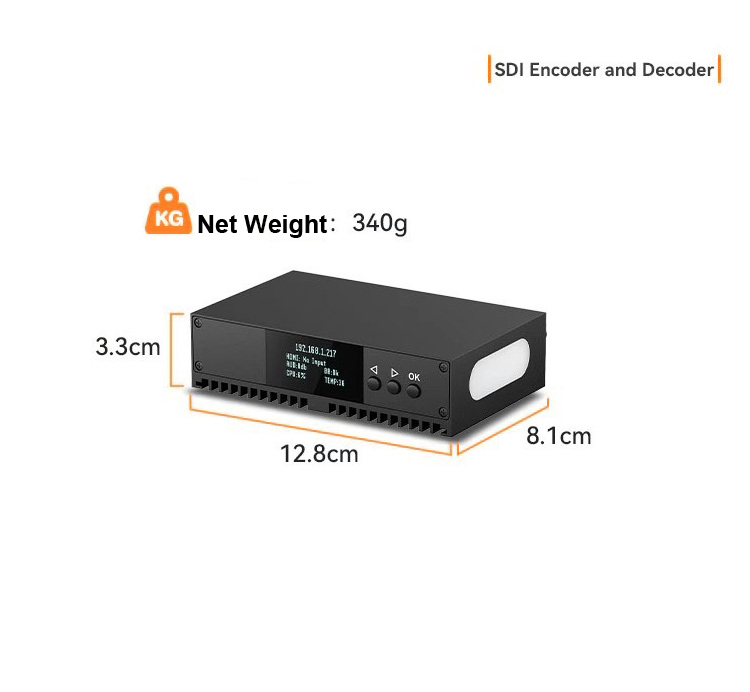

Support Tally light and working status display dual side lights Power supply DC 12V 1A Power dissipation <10W Operating temperature 0-70℃ Size 128x81x33(mm LxWxH) package size 200x170x52(mm) Net weight 0.34KG |
| Software function | Basic function WEB configuration,Parameter thermal update,Firmware upgrade,Network settings,
Password management Adjustments Brightness, contrast, saturation, color temperature, noise reduction, sharpening Special superposition Logo,Watermark, subtitle, scrolling subtitle, Mosaic, timestamp Resource management Customize font, upload watermark Logo picture |

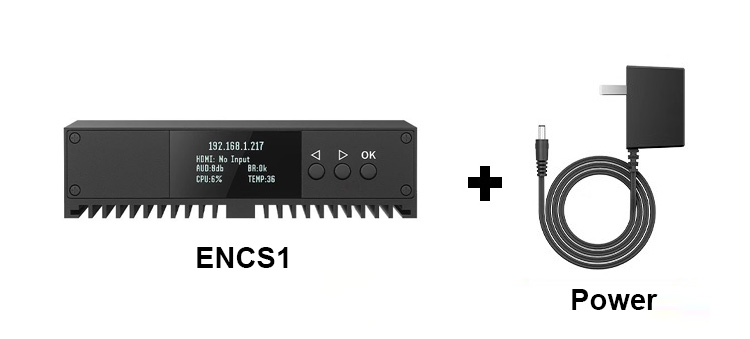

Package content
Application Range
- Network video and audio broadcast based on IP protocol.
- Suitable for all kinds of video conference software developers, system developers to do the acquisition end
- Suitable for educational network, campus network TV broadcast, multimedia classroom broadcast, multimedia conference broadcast, and enterprises and institutions internal conference broadcast and other occasions;
- Live broadcast of stock appraisal in securities industry and stock market and remote training within enterprises
- Applicable to video live broadcast business of government, media industry and other portal websites
- Suitable for remote monitoring in public places and important monitoring areas
- Suitable for remote monitoring of military exercises and two-way audio-visual communication
